Estrutura do encosto do banco dianteiro for BMW MINI R56 One (2008)

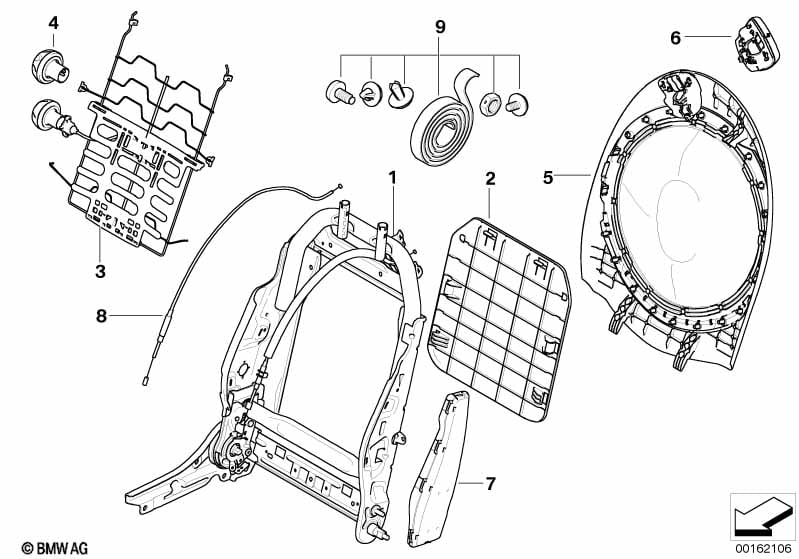

This Estrutura do encosto do banco dianteiro technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Estrutura do encosto esquerdo | 1 | 52107268885 | Shop at ECS Tuning | ||||||
| 01 | Estrutura do encosto direito | 1 | 52107268886 | Shop at ECS Tuning | ||||||
| 02 | Placa de protecção | 2 | 52102755073 | $52.44 | Shop at ECS Tuning | |||||
| 03 | Conjunto de molas, encosto esquerdo | 1 | 52102752611 | ENDED | Shop at ECS Tuning | |||||
| 03 | Conjunto de molas, encosto direito | 1 | 52102752612 | ENDED | Shop at ECS Tuning | |||||
| Para viaturas com Apoio lombar p/ condutor e acompanh. |
S488A=Sim |
|||||||||
| 03 | Conjunto de molas, encosto esquerdo | 1 | 09/2011 | 52102752611 | ENDED, NoS | Shop at ECS Tuning | ||||
| 03 | Conjunto de molas, encosto direito | 1 | 09/2011 | 52102752612 | ENDED, NoS | Shop at ECS Tuning | ||||
| 03 | Amortecim. encosto, apoio lombar esq. | 1 | 52107347727 | Shop at ECS Tuning | ||||||
| 03 | Amortecim. encosto, apoio lombar dir. | 1 | 52107347728 | Shop at ECS Tuning | ||||||
| 04 | Roda manual | 2 | 09/2011 | 52102751387 | $12.30 | ENDED | Shop at ECS Tuning | |||
| 04 | Roda manual | 2 | 52107347729 | Shop at ECS Tuning | ||||||
| 05 | Painel tras. esq. | 1 | 09/2009 | 52107225521 | $116.70 | Shop at ECS Tuning | ||||
| 05 | Painel traseiro dir. | 1 | 09/2009 | 52107225522 | $116.70 | ENDED | Shop at ECS Tuning | |||
| Para viaturas com Banco desportivo |
S481A=Sim |
|||||||||
| 05 | Painel tras. esq. | 1 | 10/2008 | 52102754359 | $25.25 | ENDED | Shop at ECS Tuning | |||
| 05 | Painel traseiro dir. | 1 | 10/2008 | 52102754360 | $25.50 | ENDED | Shop at ECS Tuning | |||
| 06 | Manípulo esquerdo | 1 | 52102754765 | $13.88 | Shop at ECS Tuning | |||||
| 06 | Manípulo direito | 1 | 52102754766 | $13.88 | Shop at ECS Tuning | |||||
| 07 | Airbag lateral do banco à frente à esq. | 1 | 52102753587 | $198.64 | Shop at ECS Tuning | |||||
| 07 | Airbag lateral do banco à frente à dir. | 1 | 52102753588 | $198.64 | Shop at ECS Tuning | |||||
| 08 | Cabo Bowden | 2 | 52109171969 | $23.38 | Shop at ECS Tuning | |||||
| Versão sem memória (Memory) Apenas indicado para lado do acompanhante |
||||||||||
| 08 | Cabo Bowden | 1 | 52109225186 | Shop at ECS Tuning | ||||||
| 09 | Kit de peças de fixação | 2 | 52102751710 | ENDED | Shop at ECS Tuning | |||||
| 09 | Mola espiral | 2 | 52102752718 | Shop at ECS Tuning | ||||||
| Também indicado para EUA, Canadá, México |
||||||||||
| 09 | Kit de peças de fixação | 2 | 52102759561 | Shop at ECS Tuning | ||||||
Notas
- ENDED = a peça foi descontinuada
- NoS = No Stock (Peça não armazenada centralmente.)
