Banco diant., estofo e revest.banco desp for BMW MINI R56 One (2008)

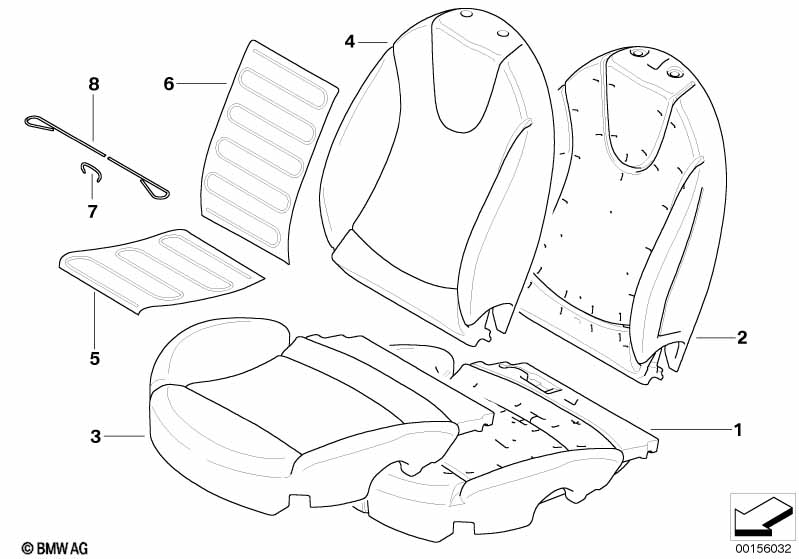

This Banco diant., estofo e revest.banco desp technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para viaturas com Banco desportivo e Banco desportivo Recaro e Tecido "Cosmos" ou Tecido "Checkered" ou Tecido/pele "Ray" ou Tecido/pele 'Cross Check' ou Imitação de pele "Leatherette" ou Imitação de pele "Leatherette" ou Pele "Natural" ou Pele "Punch" |
S481A=Sim S4FAA=Não AP=Sim AT=Sim FK=Sim FT=Sim K8=Sim K9=Sim T6=Sim T8=Sim |
|||||||||
| 01 | Peça esponjosa banco desportivo esq. | AT,FK,T6,T8 | 1 | 52102751379 | $111.37 | Shop at ECS Tuning | ||||
| 01 | Peça esponjosa banco desportivo drt. | AT,FK,T6,T8 | 1 | 52102751380 | Shop at ECS Tuning | |||||
| 02 | Peça esponjosa encosto desportivo esq. | AT,FK,T6,T8 | 1 | 09/2009 | 52102751381 | $122.49 | ENDED | Shop at ECS Tuning | ||
| 02 | Peça esponjosa encosto desportivo drt. | AT,FK,T6,T8 | 1 | 09/2009 | 52102751382 | $122.49 | Shop at ECS Tuning | |||
| Para viaturas com Banco desportivo e Tecido/pele "Ray"/pacific-blue |
S481A=Sim FKE3=Sim |
|||||||||
| 03 | Revest.banco desport. tecido/pele esq. | PACIFIC BLUE | 1 | 11/2009 | 52102753477 | $323.09 | ENDED | Shop at ECS Tuning | ||
| 03 | Revest.banco desport. tecido/pele drt. | PACIFIC BLUE | 1 | 11/2009 | 52102753478 | ENDED | Shop at ECS Tuning | |||
| 03 | Revest.banco desport. tecido/pele esq. | PACIFIC BLUE | 1 | 52107242357 | Shop at ECS Tuning | |||||
| 03 | Revest.banco desport. tecido/pele drt. | PACIFIC BLUE | 1 | 52107242358 | Shop at ECS Tuning | |||||
| Para viaturas com Banco desportivo e Tecido 'Checkered'/JCW carbon black Costura em ''red'' |
S481A=Sim ATP9=Sim |
|||||||||
| 03 | Revestim.banco desportivo tecido esq. | ATP9 CARB.BLACK | 1 | 52107284499 | Shop at ECS Tuning | |||||
| 03 | Revestim.banco desportivo tecido drt. | ATP9 CARB.BLACK | 1 | 52107284500 | NoS | Shop at ECS Tuning | ||||
| Para viaturas com Banco desportivo e Tecido "Checkered"/carbon-black |
S481A=Sim ATE1=Sim |
|||||||||
| 03 | Revestim.banco desportivo tecido esq. | CARBON BLACK | 1 | 52102753469 | $215.40 | Shop at ECS Tuning | ||||
| 03 | Revestim.banco desportivo tecido drt. | CARBON BLACK | 1 | 52102753470 | Shop at ECS Tuning | |||||
| Para viaturas com Banco desportivo e Tecido/pele "Ray"/rooster-red |
S481A=Sim FKE6=Sim |
|||||||||
| 03 | Revest.banco desport. tecido/pele esq. | ROOSTER RED | 1 | 11/2009 | 52102753479 | $323.09 | ENDED | Shop at ECS Tuning | ||
| 03 | Revest.banco desport. tecido/pele drt. | ROOSTER RED | 1 | 11/2009 | 52102753480 | ENDED | Shop at ECS Tuning | |||
| Para viaturas com Banco desportivo e Pele "Gravity"/tuscan-beige |
S481A=Sim T6E4=Sim |
|||||||||
| 03 | Capa em pele para banco desportivo esq. | TUSCAN BEIGE | 1 | 52107229569 | $542.77 | Shop at ECS Tuning | ||||
| 03 | Capa em pele para banco desportivo dir. | TUSCAN BEIGE | 1 | 52107229570 | Shop at ECS Tuning | |||||
| Para viaturas com Banco desportivo e Tecido "Cosmos"/carbon-black |
S481A=Sim APE1=Sim |
|||||||||
| 03 | Revestim.banco desportivo tecido esq. | CARBON BLACK | 1 | 52102753467 | $215.40 | Shop at ECS Tuning | ||||
| 03 | Revestim.banco desportivo tecido drt. | CARBON BLACK | 1 | 52102753468 | Shop at ECS Tuning | |||||
| Para viaturas com Banco desportivo e Pele "Punch"/carbon-black |
S481A=Sim T8E1=Sim |
|||||||||
| 03 | Capa em pele para banco desportivo esq. | CARBON BLACK | 1 | 52107229557 | $542.77 | Shop at ECS Tuning | ||||
| 03 | Capa em pele para banco desportivo dir. | CARBON BLACK | 1 | 52107229558 | Shop at ECS Tuning | |||||
| Para viaturas com Banco desportivo e Tecido/pele "Ray"/carbon-black Riscas em cream-white |
S481A=Sim FKE1=Sim |
|||||||||
| 03 | Revest.banco desport. tecido/pele esq. | CARBON BLACK | 1 | 11/2009 | 52102753473 | $323.09 | Shop at ECS Tuning | |||
| 03 | Revest.banco desport. tecido/pele drt. | CARBON BLACK | 1 | 11/2009 | 52102753474 | ENDED | Shop at ECS Tuning | |||
| 03 | Revest.banco desport. tecido/pele esq. | CARBON BLACK | 1 | 08/2010 | 52107233757 | ENDED | Shop at ECS Tuning | |||
| 03 | Revest.banco desport. tecido/pele drt. | CARBON BLACK | 1 | 08/2010 | 52107233758 | Shop at ECS Tuning | ||||
| Para viaturas com Banco desportivo e Tecido/pele "Ray"/cream-white |
S481A=Sim FKE2=Sim |
|||||||||
| 03 | Revest.banco desport. tecido/pele esq. | CREAM WHITE | 1 | 11/2009 | 52102753475 | $323.09 | ENDED | Shop at ECS Tuning | ||
| 03 | Revest.banco desport. tecido/pele drt. | CREAM WHITE | 1 | 11/2009 | 52102753476 | ENDED | Shop at ECS Tuning | |||
| 03 | Revest.banco desport. tecido/pele esq. | CREAM WHITE | 1 | 52107233759 | $332.72 | Shop at ECS Tuning | ||||
| 03 | Revest.banco desport. tecido/pele drt. | CREAM WHITE | 1 | 52107233760 | Shop at ECS Tuning | |||||
| Para viaturas com Banco desportivo e Tecido/pele "Ray"/pacific-blue |
S481A=Sim FKE3=Sim |
|||||||||
| 04 | Revest. em tecido/pele encosto desp.esq. | PACIFIC BLUE | 1 | 09/2009 | 52102753495 | $391.88 | ENDED | Shop at ECS Tuning | ||
| 04 | Revest. em tecido/pele encosto desp.dir. | PACIFIC BLUE | 1 | 09/2009 | 52102753496 | $391.88 | ENDED | Shop at ECS Tuning | ||
| Para viaturas com Banco desportivo e Tecido "Checkered"/carbon-black |
S481A=Sim ATE1=Sim |
|||||||||
| 04 | Revest. desportivo, encosto, tecido,esq. | CARBON BLACK | 1 | 09/2009 | 52102753487 | $261.25 | Shop at ECS Tuning | |||
| 04 | Revest. desportivo, encosto, tecido, dir | CARBON BLACK | 1 | 09/2009 | 52102753488 | $261.25 | ENDED | Shop at ECS Tuning | ||
| Para viaturas com Banco desportivo e Tecido/pele "Ray"/rooster-red |
S481A=Sim FKE6=Sim |
|||||||||
| 04 | Revest. em tecido/pele encosto desp.esq. | ROOSTER RED | 1 | 09/2009 | 52102753497 | $391.88 | ENDED | Shop at ECS Tuning | ||
| 04 | Revest. em tecido/pele encosto desp.dir. | ROOSTER RED | 1 | 09/2009 | 52102753498 | $391.88 | ENDED | Shop at ECS Tuning | ||
| Para viaturas com Banco desportivo e Pele "Gravity"/tuscan-beige |
S481A=Sim T6E4=Sim |
|||||||||
| 04 | Capa pele encosto banco desportivo esq. | TUSCAN BEIGE | 1 | 09/2009 | 52107229523 | $574.75 | Shop at ECS Tuning | |||
| 04 | Capa pele encosto banco desportivo drt. | TUSCAN BEIGE | 1 | 09/2009 | 52107229524 | $574.75 | ENDED | Shop at ECS Tuning | ||
| Para viaturas com Banco desportivo e Tecido "Cosmos"/carbon-black |
S481A=Sim APE1=Sim |
|||||||||
| 04 | Revest. desportivo, encosto, tecido,esq. | CARBON BLACK | 1 | 52102753485 | $261.25 | Shop at ECS Tuning | ||||
| 04 | Revest. desportivo, encosto, tecido, dir | CARBON BLACK | 1 | 52102753486 | $261.25 | Shop at ECS Tuning | ||||
| Para viaturas com Banco desportivo e Pele "Punch"/carbon-black |
S481A=Sim T8E1=Sim |
|||||||||
| 04 | Capa pele encosto banco desportivo esq. | CARBON BLACK | 1 | 09/2009 | 52107229519 | $574.75 | Shop at ECS Tuning | |||
| 04 | Capa pele encosto banco desportivo drt. | CARBON BLACK | 1 | 09/2009 | 52107229520 | $574.75 | ENDED | Shop at ECS Tuning | ||
| Para viaturas com Banco desportivo e Tecido/pele "Ray"/carbon-black |
S481A=Sim FKE1=Sim |
|||||||||
| 04 | Revest. em tecido/pele encosto desp.esq. | CARBON BLACK | 1 | 09/2009 | 52102753491 | $391.88 | Shop at ECS Tuning | |||
| 04 | Revest. em tecido/pele encosto desp.dir. | CARBON BLACK | 1 | 09/2009 | 52102753492 | $391.88 | ENDED | Shop at ECS Tuning | ||
| Para viaturas com Banco desportivo e Tecido/pele "Ray"/cream-white |
S481A=Sim FKE2=Sim |
|||||||||
| 04 | Revest. em tecido/pele encosto desp.esq. | CREAM WHITE | 1 | 09/2009 | 52102753493 | $391.88 | ENDED | Shop at ECS Tuning | ||
| 04 | Revest. em tecido/pele encosto desp.dir. | CREAM WHITE | 1 | 09/2009 | 52102753494 | $391.88 | ENDED | Shop at ECS Tuning | ||
| Para viaturas com Banco desportivo |
S481A=Sim |
|||||||||
| 05 | Elemento de aquecimento banco desportivo | 2 | 52102752606 | $101.98 | Shop at ECS Tuning | |||||
| 06 | Elemento de aquecimento encosto desp. | 2 | 52102755089 | $76.30 | Shop at ECS Tuning | |||||
| 07 | Grampo | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Arame de orlar | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notas
- ENDED = a peça foi descontinuada
- NoS = No Stock (Peça não armazenada centralmente.)
