Relé for BMW 5 Series E12 518 (1981)

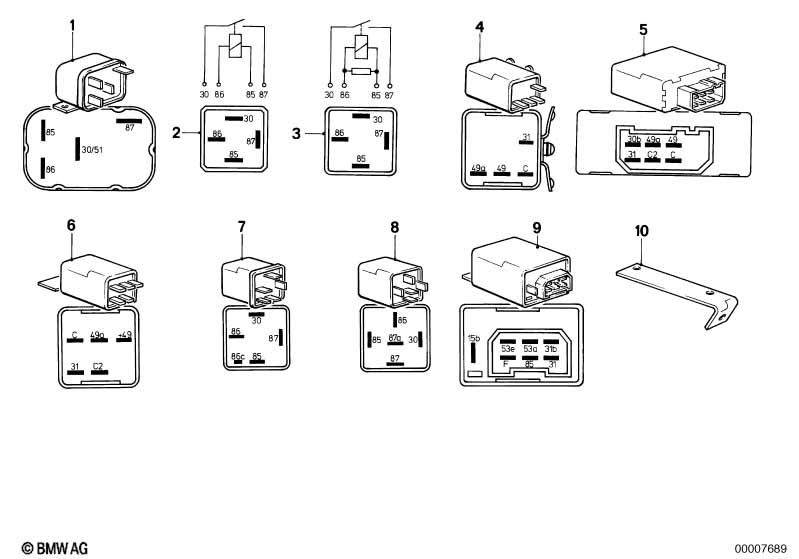

This Relé technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Relé | GELB | X | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Sinal das luzes de emergência | 1 | 61311365609 | Shop at ECS Tuning | ||||||
| Para viaturas com Gancho de reboque |
=Sim |
|||||||||
| 05 | Sinal das luzes de emergência | BOSCH | 1 | 61311356383 | ENDED | Shop at ECS Tuning | ||||
| 06 | Sinal das luzes de emergência | HELLA | 1 | 61311365117 | $40.21 | ENDED | Shop at ECS Tuning | |||
| Para viaturas com Versão para a Suíça e Luz de nevoeiro traseira |
L804A=Sim =Sim |
|||||||||
| 08 | Relé comutador violeta Signal | 1 | 01/1980 | 61361388911 | $13.96 | Shop at ECS Tuning | ||||
| 09 | Unidade comando interv. limpeza/lavagem | 1 | 61311357904 | ENDED | Shop at ECS Tuning | |||||
Notas
- ENDED = a peça foi descontinuada
