Cabo rep.Cablagem principal Antena/Coax for BMW 2 Series F44 Gran Coupé 220d (2024)

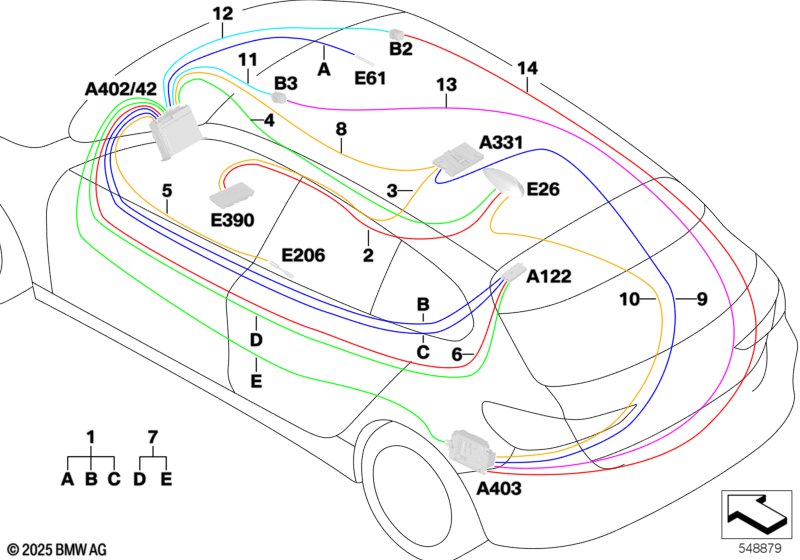

This Cabo rep.Cablagem principal Antena/Coax technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Módulo rep.unidade principal v.básica | 1 | 61119836594 | Shop at ECS Tuning | ||||||
| Para viaturas com BMW Live Cockpit Professional |
S6U3A=Sim |
|||||||||
| 01 | Módulo rep.unidade principal v.básica | 1 | 61119836659 | Shop at ECS Tuning | ||||||
| Para viaturas com Telefonia com carregamento sem fios e Telefonia com carregamento sem fios |
S6NVA=Sim S6NWA=Sim |
|||||||||
| 02 | Cabo de antena para telefone | L= 4326MM | 1 | 61119836544 | Shop at ECS Tuning | |||||
| Para viaturas com Telefonia com carregamento sem fios e Telefonia com carregamento sem fios |
S6NVA=Sim S6NWA=Não |
|||||||||
| 02 | Cabo de antena para telefone | L= 4326MM | 1 | 61119836544 | Shop at ECS Tuning | |||||
| Para viaturas com Telefonia com carregamento sem fios e Telefonia com carregamento sem fios |
S6NVA=Não S6NWA=Sim |
|||||||||
| 02 | Cabo de antena para telefone | L= 4326MM | 1 | 61119836544 | Shop at ECS Tuning | |||||
| Para viaturas com Teleservices e Chamada de emergência por lei |
S6AEA=Sim S6AFA=Sim |
|||||||||
| 03 | Cabo de antena para telefone | L= 4227MM | 1 | 61119836545 | Shop at ECS Tuning | |||||
| Para viaturas com Teleservices e Chamada de emergência por lei |
S6AEA=Sim S6AFA=Não |
|||||||||
| 03 | Cabo de antena para telefone | L= 4227MM | 1 | 61119836545 | Shop at ECS Tuning | |||||
| Para viaturas com Teleservices e Chamada de emergência por lei |
S6AEA=Não S6AFA=Sim |
|||||||||
| 03 | Cabo de antena para telefone | L= 4227MM | 1 | 61119836545 | Shop at ECS Tuning | |||||
| Para viaturas com BMW Live Cockpit Professional |
S6U3A=Sim |
|||||||||
| 04 | Cabo para antena GPS | L= 4530MM | 1 | 61119836660 | Shop at ECS Tuning | |||||
| Para viaturas com BMW Live Cockpit Plus |
S6U2A=Sim |
|||||||||
| 04 | Cabo para antena GPS | L= 4530MM | 1 | 61119838828 | Shop at ECS Tuning | |||||
| Para viaturas com Preparação Apple Carplay e BMW Live Cockpit Plus e BMW Live Cockpit Professional |
S6CPA=Sim S6U2A=Sim S6U3A=Sim |
|||||||||
| 05 | Cabo de reparação Cabo de antena WLAN | L= 1110MM | 1 | 61119432823 | Shop at ECS Tuning | |||||
| Para viaturas com Preparação Apple Carplay e BMW Live Cockpit Plus e BMW Live Cockpit Professional |
S6CPA=Sim S6U2A=Sim S6U3A=Não |
|||||||||
| 05 | Cabo de reparação Cabo de antena WLAN | L= 1110MM | 1 | 61119432823 | Shop at ECS Tuning | |||||
| Para viaturas com Preparação Apple Carplay e BMW Live Cockpit Plus e BMW Live Cockpit Professional |
S6CPA=Sim S6U2A=Não S6U3A=Sim |
|||||||||
| 05 | Cabo de reparação Cabo de antena WLAN | L= 1110MM | 1 | 61119432823 | Shop at ECS Tuning | |||||
| Para viaturas com Preparação Apple Carplay e BMW Live Cockpit Plus e BMW Live Cockpit Professional |
S6CPA=Sim S6U2A=Não S6U3A=Não |
|||||||||
| 05 | Cabo de reparação Cabo de antena WLAN | L= 1110MM | 1 | 61119432823 | Shop at ECS Tuning | |||||
| Para viaturas com Preparação Apple Carplay e BMW Live Cockpit Plus e BMW Live Cockpit Professional |
S6CPA=Não S6U2A=Sim S6U3A=Sim |
|||||||||
| 05 | Cabo de reparação Cabo de antena WLAN | L= 1110MM | 1 | 61119432823 | Shop at ECS Tuning | |||||
| Para viaturas com Preparação Apple Carplay e BMW Live Cockpit Plus e BMW Live Cockpit Professional |
S6CPA=Não S6U2A=Sim S6U3A=Não |
|||||||||
| 05 | Cabo de reparação Cabo de antena WLAN | L= 1110MM | 1 | 61119432823 | Shop at ECS Tuning | |||||
| Para viaturas com Preparação Apple Carplay e BMW Live Cockpit Plus e BMW Live Cockpit Professional |
S6CPA=Não S6U2A=Não S6U3A=Sim |
|||||||||
| 05 | Cabo de reparação Cabo de antena WLAN | L= 1110MM | 1 | 61119432823 | Shop at ECS Tuning | |||||
| Para viaturas com Módulo receptor DAB |
S654A=Sim |
|||||||||
| 06 | Cabo de antena DAB | L= 4211MM | 1 | 61119836540 | Shop at ECS Tuning | |||||
| 07 | Módulo de reparação antenas DAB | 1 | 61119836541 | Shop at ECS Tuning | ||||||
| 11 | Cabo rep.cabo com bainha blindado | L= 5147MM | 1 | 61115A61E26 | Shop at ECS Tuning | |||||
| 12 | Cabo rep.cabo com bainha blindado | L= 3852MM | 1 | 61115A61E29 | Shop at ECS Tuning | |||||
| 13 | Cabo rep.cabo com bainha blindado | L= 6789MM | 1 | 61115A61E27 | Shop at ECS Tuning | |||||
| 14 | Cabo rep.cabo com bainha blindado | L= 5494MM | 1 | 61115A61E30 | Shop at ECS Tuning | |||||
