Cabo de alimentação Cablagem principal for BMW 2 Series F44 Gran Coupé 220d (2024)

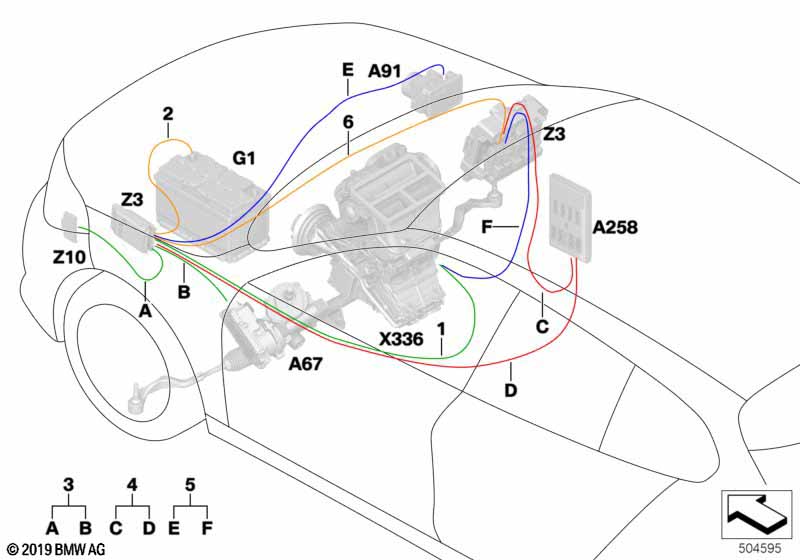

This Cabo de alimentação Cablagem principal technical drawing provides a detailed breakdown of the assembly for the 2 Series F44 Gran Coupé 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cabo alim.PTC Aquec.suplem.independente | 1 | 61115A07A55 | Shop at ECS Tuning | ||||||
| 02 | Linha de alimentação distribuidor B+ | L= 325MM | 1 | 61115A07A40 | Shop at ECS Tuning | |||||
| 03 | Módulo de reparação EPS | 1 | 61115A07A42 | Shop at ECS Tuning | ||||||
| 04 | Módulo reparação Linhas de alimentação | 1 | 61115A07A58 | Shop at ECS Tuning | ||||||
| 05 | Módulo reparação Linhas de alimentação | 1 | 61115A07A60 | Shop at ECS Tuning | ||||||
| 06 | Linha alimentação distribuidor corrente | L= 1494MM | 1 | 61115A07A62 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F44 Gran Coupé 220d Cabo de alimentação Cablagem principal?
- This technical diagram illustrates the Cabo de alimentação Cablagem principal within the Equip. eléctrico geral de viaturas group for the 2 Series F44 Gran Coupé 220d produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Cabo alim.PTC Aquec.suplem.independente (Part #61115A07A55).
- Which models use the hardware listed in this Cabo de alimentação Cablagem principal?
- The hardware and components featured in the Cabo de alimentação Cablagem principal are specific to the 2 Series F44 Gran Coupé 220d produced during 2024. These technical specifications ensure that parts like the Cabo alim.PTC Aquec.suplem.independente (61115A07A55) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cabo de alimentação Cablagem principal assembly?
- Each item in the Cabo de alimentação Cablagem principal corresponds to the numbered list below the illustration. For the 2 Series F44 Gran Coupé 220d, you can identify the Cabo alim.PTC Aquec.suplem.independente by locating its position on the schematic, which then links to the official BMW part number 61115A07A55 for the Equip. eléctrico geral de viaturas section.
