Cabo da bateria/cabo da massa for BMW XM G09 XM (2025)

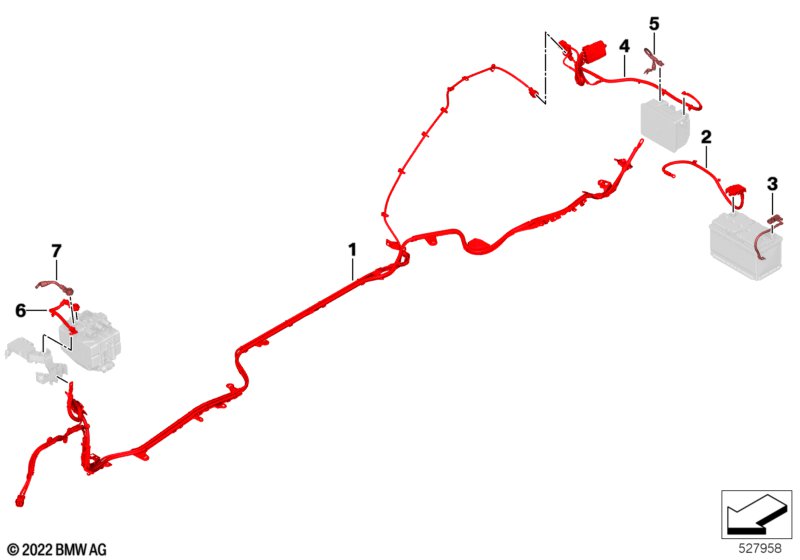

This Cabo da bateria/cabo da massa technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cablagem emARS por baixo do piso | 48V | 1 | 61125A403F6 | Shop at ECS Tuning | |||||
| 02 | Cabo da bateria polo positivo | SBK4 | 1 | 61125A69F75 | Shop at ECS Tuning | |||||
| 03 | Cabo negativo da bateria IBS | 1 | 61215B3E991 | Shop at ECS Tuning | ||||||
| 04 | Distribuidor B+ com linhas | 1 | 61125A403F8 | Shop at ECS Tuning | ||||||
| 05 | Cabo do negativo da bateria Supercap | 48V | 1 | 61125A403F9 | Shop at ECS Tuning | |||||
| 06 | Cabo da bateria positivo CCU | 1 | 61125A1FA11 | Shop at ECS Tuning | ||||||
| 07 | Cabo de massa CCU | 1 | 61125A1FA13 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW XM G09 XM Cabo da bateria/cabo da massa?
- This technical diagram illustrates the Cabo da bateria/cabo da massa within the Equip. eléctrico geral de viaturas group for the XM G09 XM produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Cablagem emARS por baixo do piso (Part #61125A403F6).
- Which models use the hardware listed in this Cabo da bateria/cabo da massa?
- The hardware and components featured in the Cabo da bateria/cabo da massa are specific to the XM G09 XM produced during 2025. These technical specifications ensure that parts like the Cablagem emARS por baixo do piso (61125A403F6) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cabo da bateria/cabo da massa assembly?
- Each item in the Cabo da bateria/cabo da massa corresponds to the numbered list below the illustration. For the XM G09 XM, you can identify the Cablagem emARS por baixo do piso by locating its position on the schematic, which then links to the official BMW part number 61125A403F6 for the Equip. eléctrico geral de viaturas section.
