Farol de nevoeiro for BMW MINI R56 One (2008)

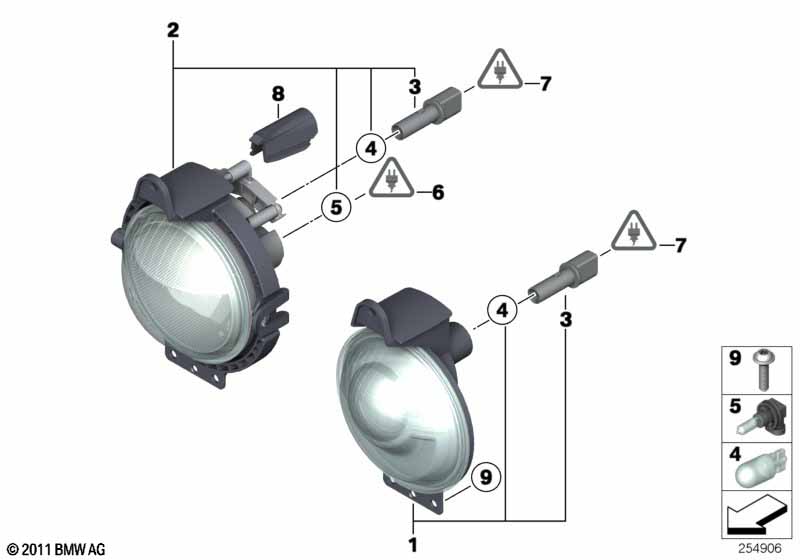

This Farol de nevoeiro technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Luz de presença da viatura | 2 | 63172751293 | $54.55 | Shop at ECS Tuning | |||||
| Para viaturas com Farol de nevoeiro |
S520A=Sim |
|||||||||
| 02 | Farol de nevoeiro com luz de presença | 2 | 63172751295 | $113.00 | Shop at ECS Tuning | |||||
| 03 | Porta-lâmpadas da luz de presença | 2 | 63128380205 | $6.85 | Shop at ECS Tuning | |||||
| 04 | Lâmpada Longlife | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| Para viaturas com Farol de nevoeiro |
S520A=Sim |
|||||||||
| 05 | Lâmpada incandescente | H8 12V 35W | 2 | 07119906503 | Shop at ECS Tuning | |||||
| 06 | Caixa de contactos fêmea, preto | 2 POL. | 2 | 09/2014 | 61136907388 | $1.82 | Shop at ECS Tuning | |||
| apenas em combinação com | ||||||||||
| -- | Contacto de mola plana JPT ELA com cabo | 0,5-1,0 MM² AG | X | 09/2014 | 61130070584 | Shop at ECS Tuning | ||||
| 06 | Kit de reparação Invólucro fêmea | 2 POL. | 2 | 61132360041 | Shop at ECS Tuning | |||||
| apenas em combinação com | ||||||||||
| -- | Contacto de mola plana JPT ELA com cabo | 0,5-1,0 MM² AG | X | 61130070584 | Shop at ECS Tuning | |||||
| 07 | Caixa contac.fêmea universal não cod. | 2 POL. | 2 | 61138373332 | $2.70 | Shop at ECS Tuning | ||||
| apenas em combinação com | ||||||||||
| -- | Contacto de tomada ELO-Power ELA c/ cabo | 0,5- 1,0 MM² SN | 2 | 61130070582 | Shop at ECS Tuning | |||||
| 08 | Elemento de ajuste à esquerda | 1 | 63172755723 | $7.53 | Shop at ECS Tuning | |||||
| 08 | Elemento de ajuste à direita | 1 | 63172755724 | $7.53 | Shop at ECS Tuning | |||||
| 09 | Parafuso PT | M5X16 | 6 | 51642753389 | $0.69 | Shop at ECS Tuning | ||||
