Sensor para AUC for BMW MINI R56 One (2008)

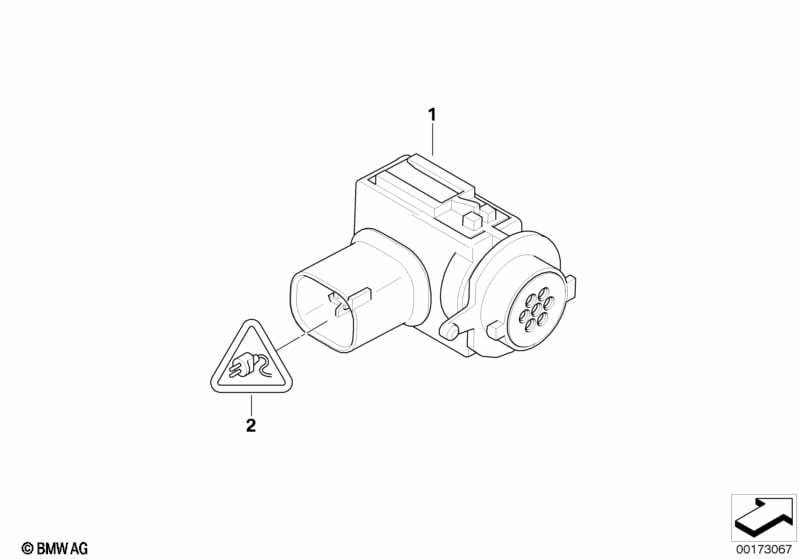

This Sensor para AUC technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sensor para AUC | 1 | 03/2009 | 64119240180 | +core | Shop at ECS Tuning | ||||
| 02 | Caixa contac.fêmea universal não cod. | 3 POL. | 1 | 03/2009 | 61138365348 | $3.40 | Shop at ECS Tuning | |||
| apenas em combinação com | ||||||||||
| 02 | Kit de reparação Invólucro fêmea | 3 POL. | 1 | 03/2009 | 61132359998 | Shop at ECS Tuning | ||||
| apenas em combinação com | ||||||||||
| -- | Contacto de tomada MQS ELA com cabo | 0,5-0,75 MM² AG | X | 03/2009 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contacto de tomada MQS ELA com cabo | 0,35-0,5 MM² AG | X | 03/2009 | 61130056961 | Shop at ECS Tuning | ||||
Notas
- +core = plus core charge (possibilidade de devolver a peça antiga)
