Painel de comandos da chaufagem for BMW MINI R56 One (2008)

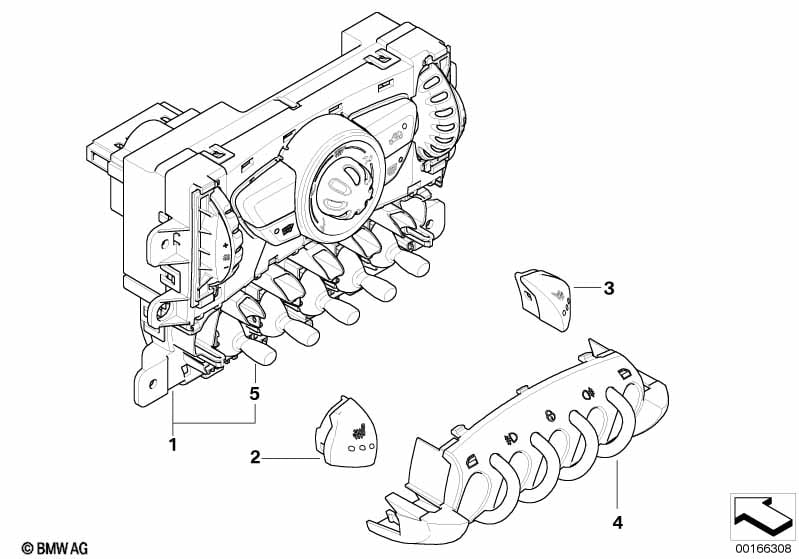

This Painel de comandos da chaufagem technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Para viaturas com Ar condicionado e Ar condicionado automático |
S530A=Não S534A=Não |
||||||||
| 01 | Painel de comandos da chaufagem | 1 | 08/2010 | 64113454856 | $479.67 | Shop at ECS Tuning | ||||
| Para viaturas com Embalagem transparente |
S359A=Sim |
|||||||||
| 01 | Painel de comandos da chaufagem | 1 | 08/2010 | 64113454855 | ENDED, +core | Shop at ECS Tuning | ||||
| Para viaturas com Aquecimento banco condutor/ acompanh. |
S494A=Sim |
|||||||||
| 02 | Guarnição interr. condutor diant. | 1 | 08/2010 | 64113452082 | $34.66 | Shop at ECS Tuning | ||||
| 03 | Guarnição interr. acompanh. diant. | 1 | 08/2010 | 64113452081 | $34.66 | Shop at ECS Tuning | ||||
| 04 | Guarnição do interruptor | 1 | 08/2010 | 64113452078 | $66.19 | ENDED, +core | Shop at ECS Tuning | |||
| Para viaturas com Aquecimento banco condutor/ acompanh. |
S494A=Sim |
|||||||||
| 04 | Guarnição do interruptor | 1 | 08/2010 | 64113452076 | $66.19 | ENDED, +core | Shop at ECS Tuning | |||
| Para viaturas com Farol de nevoeiro |
S520A=Sim |
|||||||||
| 04 | Guarnição do interruptor | 1 | 08/2010 | 64113442592 | $87.73 | ENDED, +core | Shop at ECS Tuning | |||
| Para viaturas com Luz de nevoeiro traseira |
S5AAA=Sim |
|||||||||
| 04 | Guarnição do interruptor | 1 | 08/2010 | 64113452077 | $66.19 | ENDED, +core | Shop at ECS Tuning | |||
| Para viaturas com Luz de nevoeiro traseira e Farol de nevoeiro |
S5AAA=Sim S520A=Sim |
|||||||||
| 04 | Guarnição do interruptor | 1 | 08/2010 | 64113442594 | $87.73 | Shop at ECS Tuning | ||||
| Para viaturas com Aquecimento banco condutor/ acompanh. e Farol de nevoeiro |
S494A=Sim S520A=Sim |
|||||||||
| 04 | Guarnição do interruptor | 1 | 08/2010 | 64113442604 | $87.73 | ENDED, +core | Shop at ECS Tuning | |||
| Para viaturas com Aquecimento banco condutor/ acompanh. e Luz de nevoeiro traseira |
S494A=Sim S5AAA=Sim |
|||||||||
| 04 | Guarnição do interruptor | 1 | 08/2010 | 64113452075 | $66.19 | +core | Shop at ECS Tuning | |||
| Para viaturas com Aquecimento banco condutor/ acompanh. e Luz de nevoeiro traseira e Farol de nevoeiro |
S494A=Sim S5AAA=Sim S520A=Sim |
|||||||||
| 04 | Guarnição do interruptor | 1 | 08/2010 | 64113442608 | $87.73 | Shop at ECS Tuning | ||||
| 05 | Alavanca de accionamento | 5 | 08/2010 | 64113452459 | $7.97 | Shop at ECS Tuning | ||||
Notas
- ENDED = a peça foi descontinuada
- +core = plus core charge (possibilidade de devolver a peça antiga)
