Gancho de reboque peças individuais for BMW MINI Clubman R55 Cooper (2006)

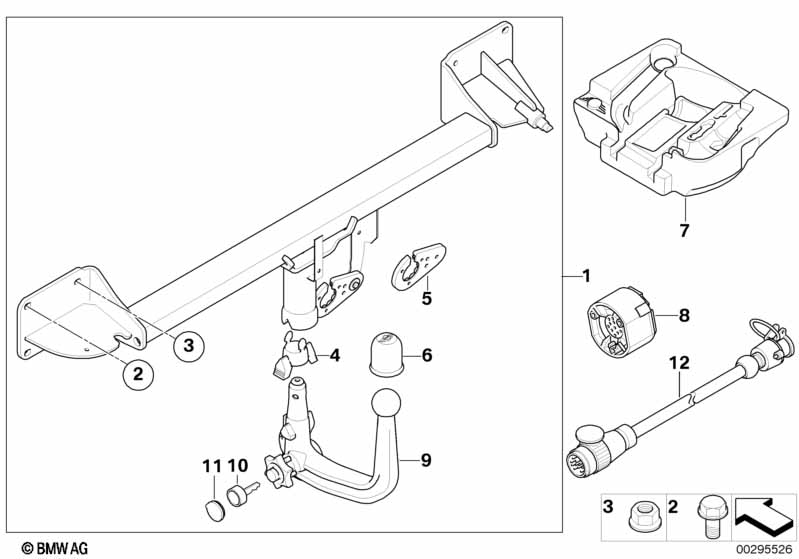

This Gancho de reboque peças individuais technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Descrição | Suplemento | Quantidade | De | Até | Número de Peça | Preço | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gancho p/ reboque c/gancho amovível | 1 | 08/2010 | 71606785319 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Parafuso sextavado | M8X30-10.9-ZNS3 | 4 | 31106760122 | $0.80 | Shop at ECS Tuning | ||||
| 03 | Porca sextavada com anilha | M8-ZNS3 | 4 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 04 | Taco | 1 | 71606759986 | Shop at ECS Tuning | ||||||
| 05 | Suporte da ficha fêmea | 1 | 71606769304 | Shop at ECS Tuning | ||||||
| 06 | Capa de protecção do gancho de reboque | 1 | 71606758771 | Shop at ECS Tuning | ||||||
| 07 | Cabeça esférica do porta-objectos | 1 | 71106778769 | Shop at ECS Tuning | ||||||
| 08 | Tomada | 1 | 61139169033 | +core | Shop at ECS Tuning | |||||
| 09 | Gancho de reboque amovível | 1 | 71606755827 | +core | Shop at ECS Tuning | |||||
| 10 | Chave (código) 2wxx | WESTFALIA | 1 | 71601094282 | $28.18 | Shop at ECS Tuning | ||||
| 11 | Tampa de protecção da chave | 1 | 71601134422 | $1.04 | Shop at ECS Tuning | |||||
| 12 | Adaptador | 1 | 61131382153 | $145.08 | Shop at ECS Tuning |
Notas
- ENDED = a peça foi descontinuada
- +core = plus core charge (possibilidade de devolver a peça antiga)
