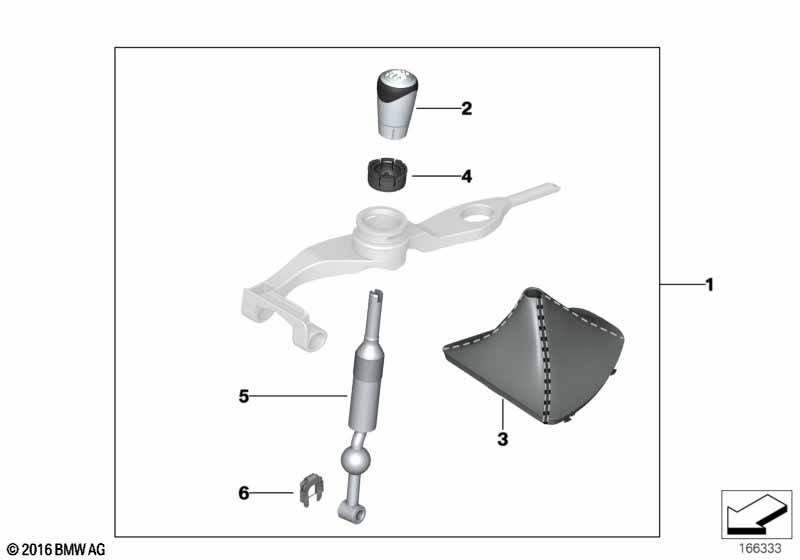

Схема переключ. МКПП BMW Performance for BMW 3 Series E91 328i (2004)
This Схема переключ. МКПП BMW Performance technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Для автомобилей с Спортивная АКПП и Стептроник и автоматическая коробка передач и Sequenzielles manuelles Getriebe (SMG) и Секвентальная КПП типа М |
S2TBA=нет S202A=нет S205A=нет S206A=нет S793A=нет |
||||||||
| Для автомобилей с Переключатель выбора передач |
SZD1A=нет |
|||||||||
| 01 | Комплект доосн.подвиж.дет.механизма ПП | BMW PERFORMANCE | 1 | 25110430359 | $229.00 | Закончено | Shop at ECS Tuning | |||
| 02 | Ручка рычага МКПП Performance | 6-GANG | 1 | 25110429269 | $114.95 | Shop at ECS Tuning | ||||
| 03 | Гофр.кожух д. рычага МКПП Performance | ALCANTARA | 1 | 25110435847 | $53.50 | Shop at ECS Tuning | ||||
| 04 | Опора рычага переключения передач | 1 | 25111220600 | $10.33 | Shop at ECS Tuning | |||||
| 05 | Рычаг переключения передач | 1 | 25117542200 | $72.23 | Shop at ECS Tuning | |||||
| 06 | Фиксирующий зажим | 1 | 25117571899 | $0.66 | Shop at ECS Tuning | |||||
Комментарии
- Закончено = запчасть больше не поставляется.
