Дополнительные элементы системы впуска for BMW 3 Series E36 316i (1993)

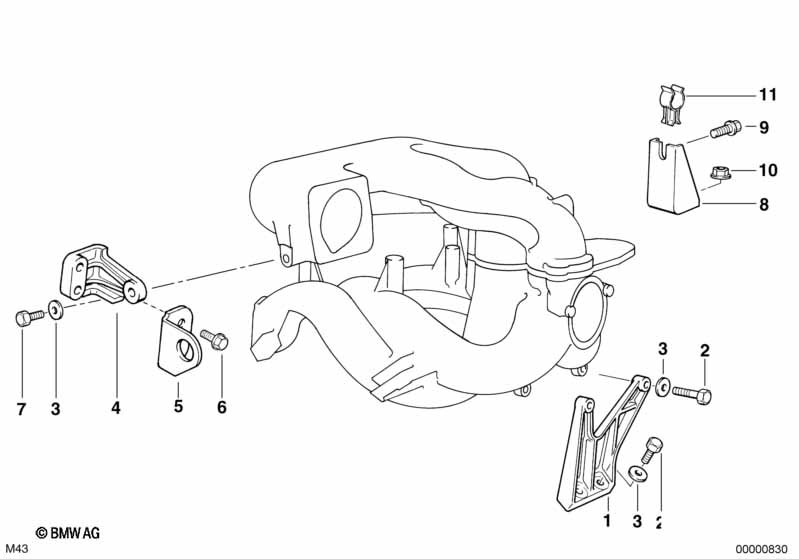

This Дополнительные элементы системы впуска technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Стойка | 1 | 09/1995 | 11611739351 | $15.10 | Shop at ECS Tuning | ||||
| 02 | Болт с шестигранной головкой | M8X35 | 4 | 07119912478 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Прокладочная шайба | 8,4X16X1,6-ZNNV | 6 | 07119907030 | Shop at ECS Tuning | |||||
| 04 | Стойка | 1 | 11611739345 | Shop at ECS Tuning | ||||||
| 05 | Лапка | 1 | 11611739346 | Shop at ECS Tuning | ||||||
| 06 | Болт с шестигранной головкой с шайбой | M7X30-Z2 | 1 | 07119901679 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Болт с шестигранной головкой с шайбой | M7X30 | 1 | 07119902921 | Shop at ECS Tuning | |||||
| 07 | Болт с шестигранной головкой | M8X35 | 2 | 07119912478 | $1.42 | Shop at ECS Tuning | ||||
| 08 | Стойка | 1 | 09/1995 | 11611247643 | $5.23 | Shop at ECS Tuning | ||||
| 09 | Болт с шестигранной головкой с шайбой | M7X16-Z2 | 1 | 07119900509 | $0.30 | Shop at ECS Tuning | ||||
| 10 | Гайка фланца | M7 | 2 | 11617545279 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Держатель шланга | 1 | 11611739684 | $1.77 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 316i Дополнительные элементы системы впуска?
- This technical diagram illustrates the Дополнительные элементы системы впуска within the Двигатель group for the 3 Series E36 316i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Стойка (Part #11611739351).
- Which models use the hardware listed in this Дополнительные элементы системы впуска?
- The hardware and components featured in the Дополнительные элементы системы впуска are specific to the 3 Series E36 316i produced during 1993. These technical specifications ensure that parts like the Стойка (11611739351) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Дополнительные элементы системы впуска assembly?
- Each item in the Дополнительные элементы системы впуска corresponds to the numbered list below the illustration. For the 3 Series E36 316i, you can identify the Стойка by locating its position on the schematic, which then links to the official BMW part number 11611739351 for the Двигатель section.
