Регулятор напряжения, диодная панель for BMW R45-R65LS..78-85 R65LS

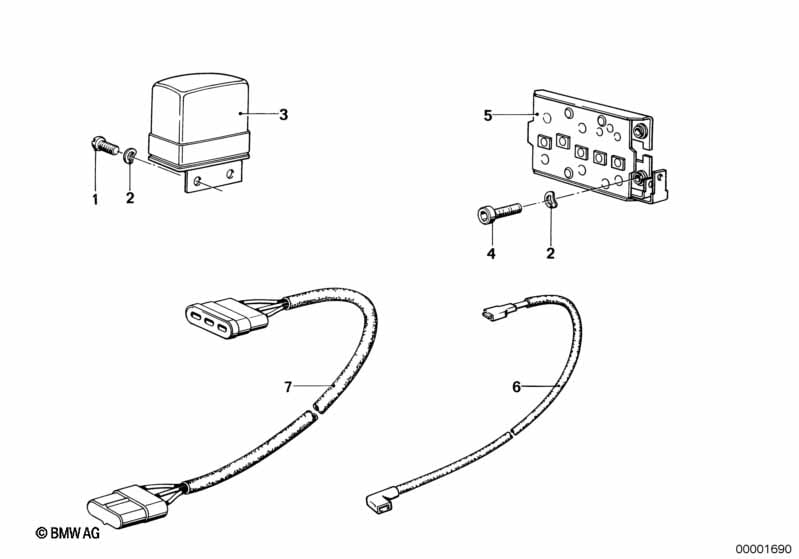

This Регулятор напряжения, диодная панель technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Болт с цилиндрической головкой | M5X12 | 2 | 09/1980 | 07119919613 | Закончено | Shop at ECS Tuning | |||
| 02 | Упругая шайба | B5 | 6 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Регулятор | 1 | 12321244409 | $95.61 | +возврат | Shop at ECS Tuning | ||||
| Для автомобилей с Исполнение для специальных автомобилей |
=да |
|||||||||
| 03 | Регулятор | 1 | 12321244737 | $158.81 | +возврат | Shop at ECS Tuning | ||||
| 04 | Болт с цилиндрической головкой | M5X20-8.8 ZNS | 4 | 07119920057 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Диодная панель | 1 | 12311244063 | $150.66 | +возврат | Shop at ECS Tuning | ||||
| 06 | пучок проводов | 1 | 12331357639 | $4.26 | Shop at ECS Tuning | |||||
| 07 | пучок проводов | 1 | 12321243178 | $20.82 | Закончено | Shop at ECS Tuning | ||||
Комментарии
- Закончено = запчасть больше не поставляется.
- +возврат = возможность возврата старой запчасти.
