Детали генератора for BMW 1502-2002tii 1602

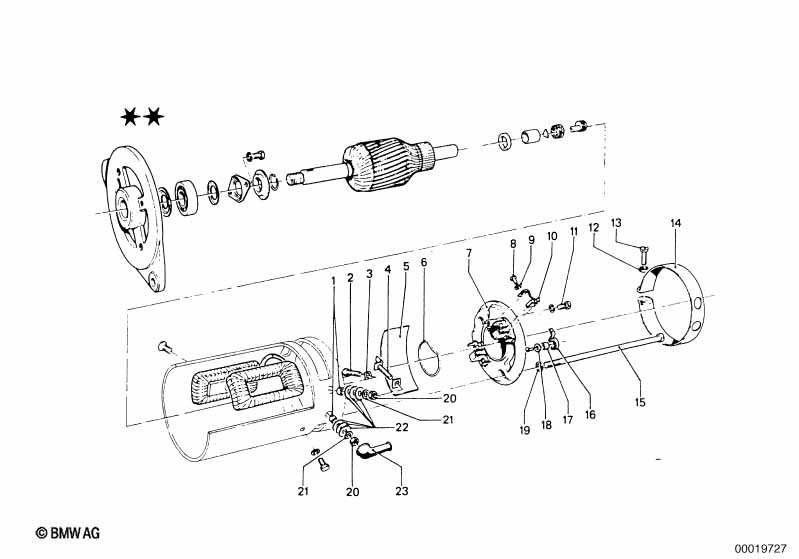

This Детали генератора technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | втулка | 2 | 12318602110 | Закончено | Shop at ECS Tuning | |||||
| 07 | Подшипник коллектора | 1 | 12318602139 | Закончено | Shop at ECS Tuning | |||||
| 08 | Болт с цилиндрической головкой | M4X5 | 2 | 07119919358 | Закончено | Shop at ECS Tuning | ||||
| 09 | Washer | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 09 | Прокладочная шайба | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 10 | ЙХвЪШ | 2 | 12318602146 | $7.14 | Закончено | Shop at ECS Tuning | ||||
| 12 | Гайка шестигранная | M4 | 1 | 07119921025 | Закончено | Shop at ECS Tuning | ||||
| 13 | Болт с цилиндрической головкой | AM 4 X 12 | 1 | 07119919380 | Закончено | Shop at ECS Tuning | ||||
| 14 | Стяжная лента | 1 | 12318602158 | Закончено | Shop at ECS Tuning | |||||
| 15 | Винт | 2 | 12318602156 | Закончено | Shop at ECS Tuning | |||||
| 18 | шайба | 2 | 12318602140 | Закончено | Shop at ECS Tuning | |||||
| 19 | Упругая шайба | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 20 | Гайка шестигранная | M5-8-ZNNIV SI | 3 | 07119905729 | Shop at ECS Tuning | |||||
| 21 | Упругая шайба | B5 | 3 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 22 | Резиновая втулка | 4 | 12318602112 | Закончено | Shop at ECS Tuning | |||||
| 23 | Резиновый колпачок | 2 | 62128570124 | Закончено | Shop at ECS Tuning |
Комментарии
- Закончено = запчасть больше не поставляется.
