Топливопровод/ элементы крепления for BMW 3 Series E30 325i (1986)

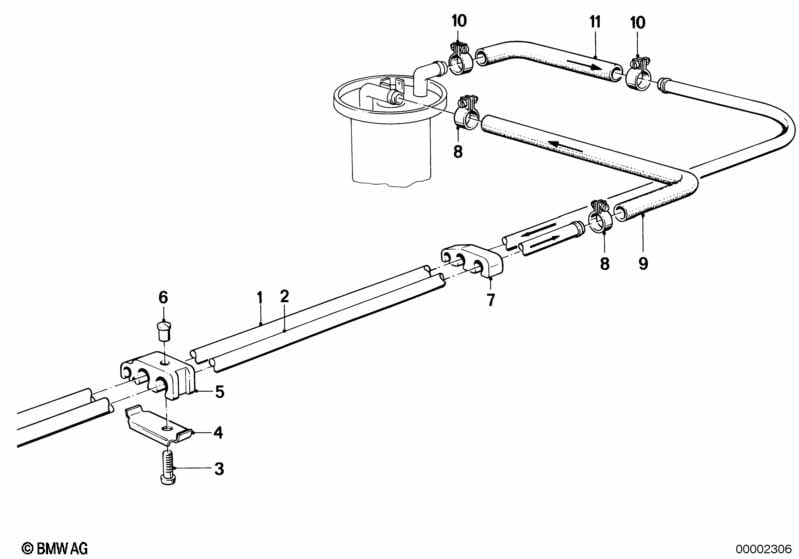

This Топливопровод/ элементы крепления technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Трубопровод подвода топлива | L=1860MM | 1 | 09/1987 | 16121179285 | $33.93 | Shop at ECS Tuning | |||
| 02 | Возвратный топливопровод | L=1932MM | 1 | 09/1987 | 16121177372 | $26.36 | Shop at ECS Tuning | |||
| 03 | Самонарезающий винт | X | 09/1987 | 34321119239 | $0.27 | Shop at ECS Tuning | ||||
| 04 | Кронштейн | X | 09/1987 | 16121155064 | $1.62 | Shop at ECS Tuning | ||||
| 05 | Хомут | X | 09/1987 | 16121177005 | $0.93 | Shop at ECS Tuning | ||||
| 06 | втулка | X | 09/1987 | 41121877025 | $0.20 | Закончено | Shop at ECS Tuning | |||
| 07 | Проставка | 2 | 09/1987 | 16121176766 | $1.03 | Shop at ECS Tuning | ||||
| 08 | хомут | L12-15 | 2 | 09/1987 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 09 | Топливный шланг | 8X13MM | X | 09/1987 | 16121180409 | $20.43 | Shop at ECS Tuning | |||
| 10 | хомут | L12-15 | 2 | 09/1987 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 11 | Топливный шланг | 8X13MM | X | 09/1987 | 16121180409 | $20.43 | Shop at ECS Tuning |
Комментарии
- Закончено = запчасть больше не поставляется.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Топливопровод/ элементы крепления?
- This technical diagram illustrates the Топливопровод/ элементы крепления within the Система подачи топлива group for the 3 Series E30 325i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Трубопровод подвода топлива (Part #16121179285).
- Which models use the hardware listed in this Топливопровод/ элементы крепления?
- The hardware and components featured in the Топливопровод/ элементы крепления are specific to the 3 Series E30 325i produced during 1986. These technical specifications ensure that parts like the Трубопровод подвода топлива (16121179285) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Топливопровод/ элементы крепления assembly?
- Each item in the Топливопровод/ элементы крепления corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Трубопровод подвода топлива by locating its position on the schematic, which then links to the official BMW part number 16121179285 for the Система подачи топлива section.
