МКПП GS6-53DZ for BMW 3 Series E90 LCI 330d (2010)

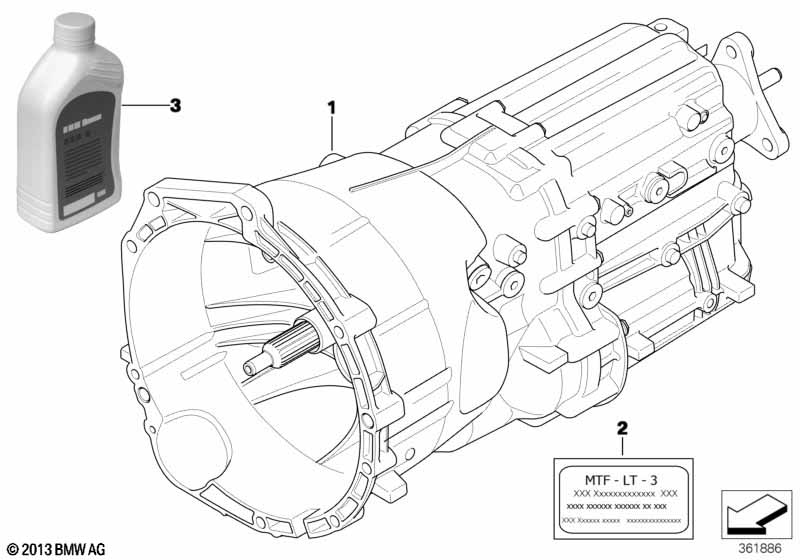

This МКПП GS6-53DZ technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP 6-ступенчатая КПП | GS6-53DZ - JGL | 1 | 23007582710 | +возврат | Shop at ECS Tuning | ||||
| 01 | RP REMAN 6-ступенчатая КПП | GS6-53DZ - TJGL | 1 | 23007582711 | +возврат | Shop at ECS Tuning |
Комментарии
- +возврат = возможность возврата старой запчасти.
