A4S270R/310R вспом.оборудов./прокладки for BMW 5 Series E34 518i (1994)

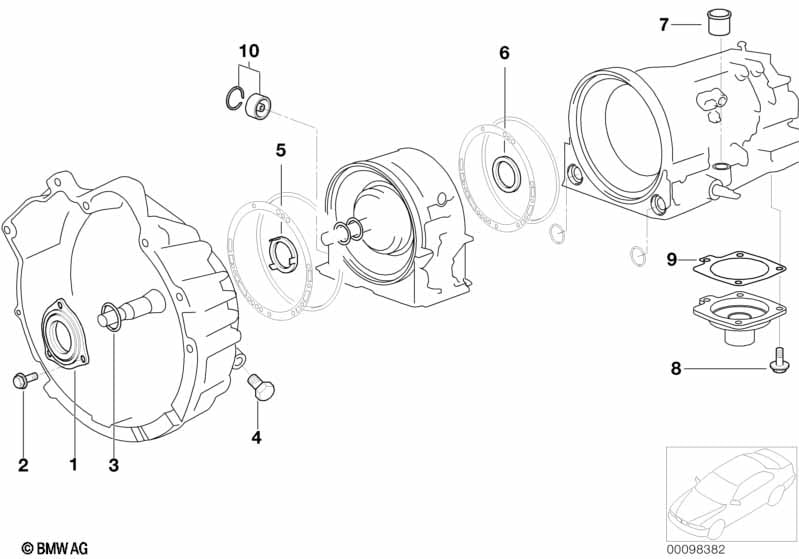

This A4S270R/310R вспом.оборудов./прокладки technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Сальник | 47X81X8 | 1 | 24121218853 | $26.13 | Shop at ECS Tuning | ||||
| 02 | Винт Torx | 3 | 24121218892 | $1.15 | Закончено | Shop at ECS Tuning | ||||
| 03 | Кольцо круг.сечения вала турбины | 1 | 24121422247 | $1.59 | Закончено | Shop at ECS Tuning | ||||
| 04 | Резьбовая пробка с Наруж шестигранником | 1 | 24001421849 | $1.88 | Закончено | Shop at ECS Tuning | ||||
| 05 | Комплект распорных шайб | 1 | 24201422850 | $22.38 | Shop at ECS Tuning | |||||
| 06 | Комплект распорных шайб | 1 | 24201423112 | $67.56 | Закончено | Shop at ECS Tuning | ||||
| 07 | Заглушка | 1 | 24111421064 | $8.25 | Закончено | Shop at ECS Tuning | ||||
| 08 | Болт с шестигранной головкой | 4 | 24231423247 | $0.79 | Закончено | Shop at ECS Tuning | ||||
| 09 | уплотнительная прокладка | 1 | 24341423250 | $6.73 | Закончено | Shop at ECS Tuning | ||||
| 10 | ремкомплект заглушки | 1 | 24337520734 | $15.58 | Shop at ECS Tuning |
Комментарии
- Закончено = запчасть больше не поставляется.
