Подшипники ступицы колеса for BMW 1502-2002tii 1602

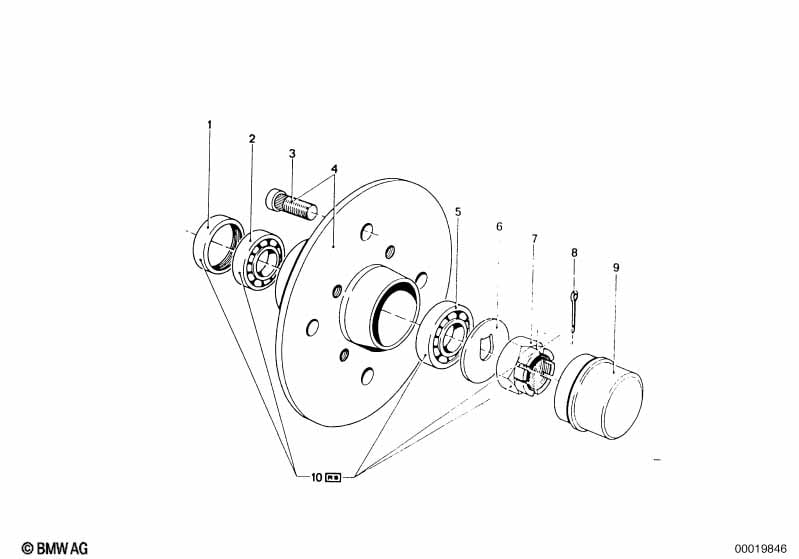

This Подшипники ступицы колеса technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Сальник | 40X52X7 | 2 | 03/1966 | 07/1977 | 31211101114 | $11.45 | Shop at ECS Tuning | ||
| 02 | Конический роликовый подшипник | 29X50,29X14,22 | 2 | 03/1966 | 07/1977 | 31211101115 | $15.36 | Shop at ECS Tuning | ||
| 03 | Штифт | 8 | 31212031750 | $2.27 | Shop at ECS Tuning | |||||
| 04 | Ступица колеса | 2 | 03/1966 | 07/1977 | 31212634000 | $376.09 | Shop at ECS Tuning | |||
| 05 | Конический роликовый подшипник | 17X39,87X13,84 | 2 | 03/1966 | 07/1977 | 31212634104 | $7.04 | Закончено | Shop at ECS Tuning | |
| 06 | Прокладочная шайба | 2 | 31212634115 | $9.20 | Shop at ECS Tuning | |||||
| 07 | Корончатая гайка | M16X1 | 2 | 31211104626 | $7.49 | Shop at ECS Tuning | ||||
| 08 | Шплинт | 2 | 31211110140 | $0.42 | Shop at ECS Tuning | |||||
| 09 | Колпачок | 2 | 03/1966 | 07/1977 | 31212031756 | $4.59 | Shop at ECS Tuning | |||
| 10 | Ремкомплект подшипника ступицы колеса | 2 | 31211107507 | Закончено | Shop at ECS Tuning | |||||
| 10 | Ремкомплект подшипника ступицы колеса | 2 | 03/1966 | 07/1977 | 31211107447 | $72.43 | Shop at ECS Tuning |
Комментарии
- Закончено = запчасть больше не поставляется.
