Дизайн BMW (диз. 6) for BMW 7 Series E38 750i (1993)

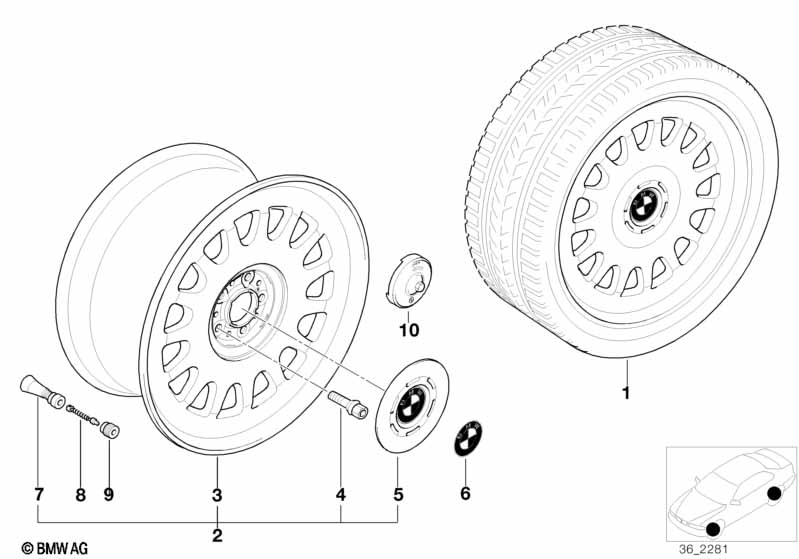

This Дизайн BMW (диз. 6) technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | дисковое колесо легкосплавное | 71/2JX16 ET:20 | 4 | 36111181840 | $302.95 | Закончено, +возврат | Shop at ECS Tuning | |||
| 04 | Колесный болт Schwarz | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Колпак ступицы колеса | 4 | 36131181897 | $19.50 | Shop at ECS Tuning | |||||
| 06 | Эмблема фирмы BMW с клеящейся пленкой | D=64,5MM | 4 | 36131181080 | $6.90 | Shop at ECS Tuning | ||||
| 07 | Вентиль шины | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | золотник вентиля | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Колпачок для вентиля | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| подходит только при резьбовой клапан системы RDC |
||||||||||
| 09 | Колпачок для вентиля RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
| 10 | Ключ колпака ступицы колеса | 1 | 36131181948 | $4.20 | Shop at ECS Tuning | |||||
Комментарии
- Закончено = запчасть больше не поставляется.
- +возврат = возможность возврата старой запчасти.
