Переднее крыло for BMW 1502-2002tii 2002 (1973)

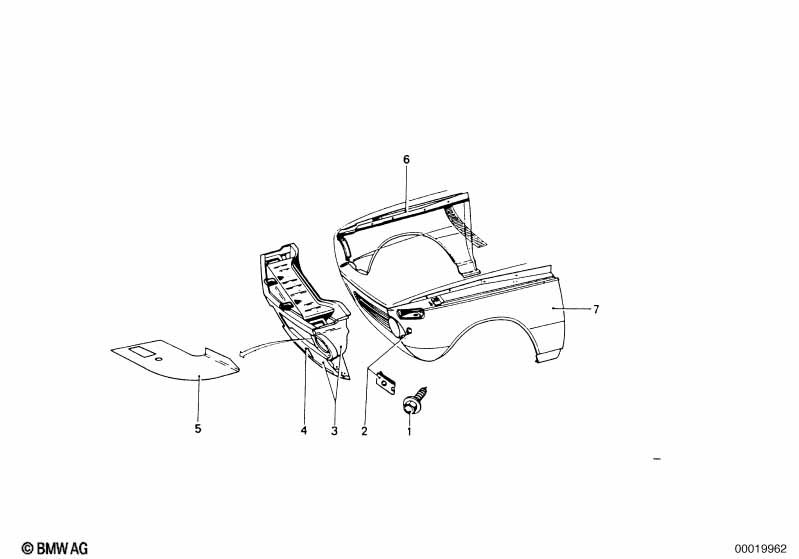

This Переднее крыло technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Саморез с шестигранной головкой | ST6,3X16-R-U2-Z | 6 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 01 | Саморез с шестигранной головкой | ST6,3X19-C-Z2 | 14 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 02 | Листовая гайка | ST6,3-1-ZNS3 | 12 | 07129904231 | Shop at ECS Tuning | |||||
| 03 | облицовка передка | 1 | 09/1973 | 07/1977 | 41331828986 | Закончено | Shop at ECS Tuning | |||
| 05 | Косынка | 1 | 09/1973 | 07/1977 | 41121840035 | $13.75 | Закончено | Shop at ECS Tuning | ||
| 05 | Косынка | 1 | 09/1973 | 07/1977 | 41121840036 | Закончено | Shop at ECS Tuning | |||
| 06 | Крыло П Пд | 1 | 03/1966 | 07/1977 | 41355490001 | $590.21 | Shop at ECS Tuning | |||
| 07 | Крыло Л Пд | 1 | 03/1966 | 07/1977 | 41355490000 | $590.21 | Shop at ECS Tuning |
Комментарии
- Закончено = запчасть больше не поставляется.
