Кронштейн передка П for BMW 3 Series E90 LCI 318d (2011)

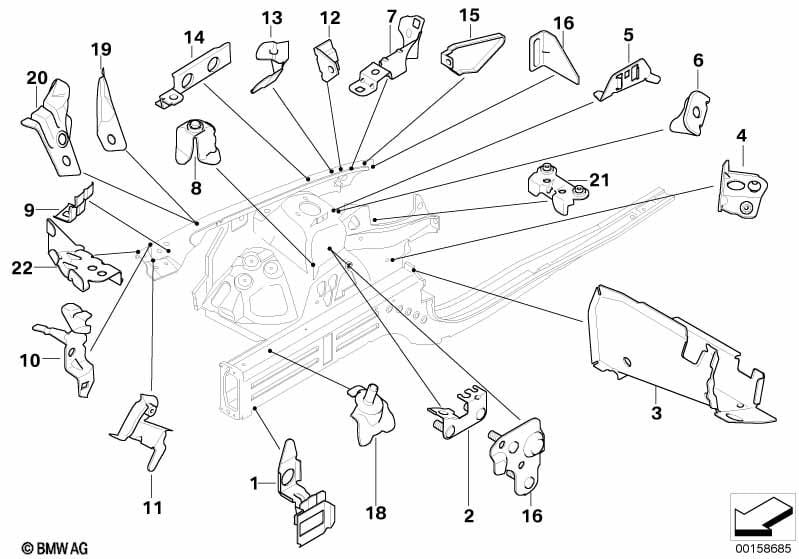

This Кронштейн передка П technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Соедин.переднего лонжерона с боковиной П | 1 | 41117152266 | $54.22 | Shop at ECS Tuning | |||||
| 04 | Кронштейн глушителя шума всасывания Нж П | 1 | 41217152264 | $3.40 | Shop at ECS Tuning | |||||
| 08 | Кронштейн глушителя шума всасывания Вх П | 1 | 41147135632 | $3.08 | Shop at ECS Tuning | |||||
| 10 | Кронштейн крыла П | 1 | 41217145350 | $7.91 | Shop at ECS Tuning | |||||
| 11 | Кронштейн глушителя шума всасывания П | 1 | 41127145362 | $7.52 | Shop at ECS Tuning | |||||
| 12 | Кронштейн бачка | 1 | 41147145348 | $3.08 | Shop at ECS Tuning | |||||
| 13 | Кронштейн крыла П Ср | 1 | 41217145356 | $3.40 | Shop at ECS Tuning | |||||
| 14 | Кронштейн крыла П Нж | 1 | 41127145360 | $3.45 | Shop at ECS Tuning | |||||
| 15 | Кронштейн крыла П Вх | 1 | 41207166684 | $3.32 | Shop at ECS Tuning | |||||
| 16 | Кронштейн бачка стеклоомывателя Вх | 1 | 41117167020 | $1.53 | Shop at ECS Tuning | |||||
| 17 | Держатель тормозного шланга П | 1 | 09/2005 | 41007184918 | $4.20 | Shop at ECS Tuning | ||||
| 18 | Кронштейн диаг.растяжки пер.лонжерона П | 1 | 41117174994 | $9.56 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 318d Кронштейн передка П?
- This technical diagram illustrates the Кронштейн передка П within the Кузов group for the 3 Series E90 LCI 318d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Соедин.переднего лонжерона с боковиной П (Part #41117152266).
- Which models use the hardware listed in this Кронштейн передка П?
- The hardware and components featured in the Кронштейн передка П are specific to the 3 Series E90 LCI 318d produced during 2011. These technical specifications ensure that parts like the Соедин.переднего лонжерона с боковиной П (41117152266) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Кронштейн передка П assembly?
- Each item in the Кронштейн передка П corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 318d, you can identify the Соедин.переднего лонжерона с боковиной П by locating its position on the schematic, which then links to the official BMW part number 41117152266 for the Кузов section.
