Заслонка заливного отверстия for BMW 3 Series E90 LCI 318i (2011)

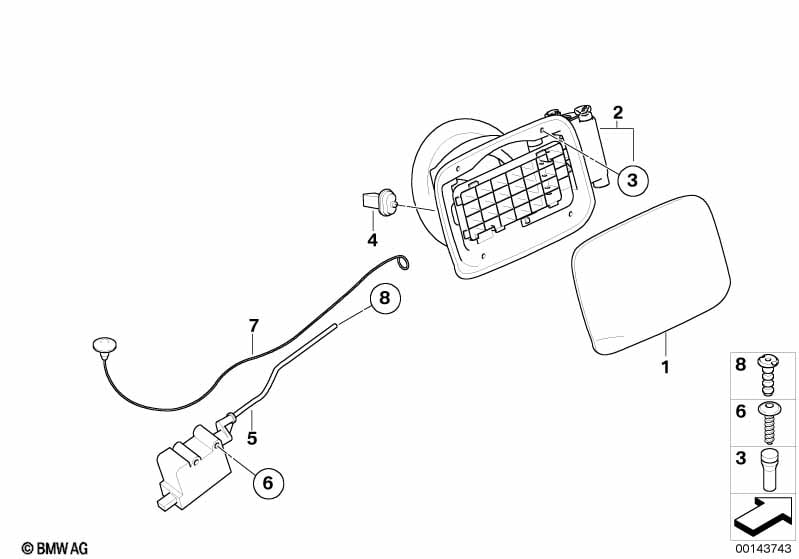

This Заслонка заливного отверстия technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Заслонка заливного отверстия | 1 | 51177060692 | $27.52 | Shop at ECS Tuning | |||||
| 02 | Защитный кожух | 1 | 51177073961 | $39.63 | Shop at ECS Tuning | |||||
| 03 | Пробка | 4 | 51177044256 | $1.02 | Shop at ECS Tuning | |||||
| 04 | Упорный буфер с выталкивателем | 1 | 51178228939 | $7.63 | Shop at ECS Tuning | |||||
| 05 | Сервопривод лючка | 1 | 03/2007 | 67116985880 | $57.47 | Shop at ECS Tuning | ||||
| 06 | Болт Torx для пластмассовых деталей | L=16MM | 2 | 07146958583 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Аварийный привод | 1 | 51257131748 | $3.57 | Shop at ECS Tuning | |||||
| 08 | Резиновая втулка | 1 | 51257075026 | $3.48 | Shop at ECS Tuning |
