Накладка порог / арка колеса for BMW 3 Series E30 M3 (1988)

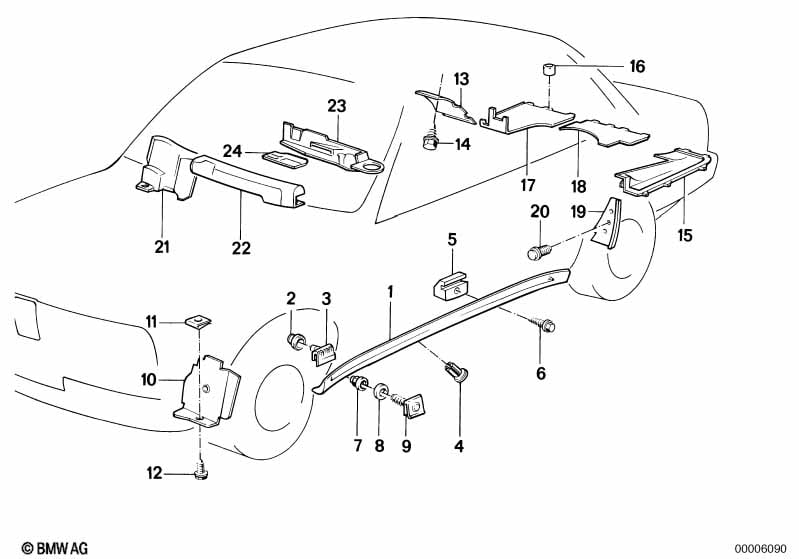

This Накладка порог / арка колеса technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Втулка зелен. | D=9,1MM | X | 51711932996 | $0.23 | Shop at ECS Tuning | ||||
| 03 | Скоба | X | 51711936517 | $0.90 | Shop at ECS Tuning | |||||
| 07 | Пластмас. гайка для шпильки с резьбой | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 08 | Скоба | 4 | 51711922599 | $0.42 | Shop at ECS Tuning | |||||
| 09 | Зажимной винт | 4 | 51711933719 | $1.94 | Shop at ECS Tuning | |||||
| 13 | Щиток, защищающий от ударов камней | 1 | 51711926498 | $11.10 | Shop at ECS Tuning | |||||
| 14 | Саморез с шестигранной головкой | ST6,3X16-R-U2-Z | 2 | 07119905017 | $0.38 | Shop at ECS Tuning | ||||
| 21 | Облицовка жгута проводов двигателя | 1 | 51711380392 | $25.05 | Shop at ECS Tuning | |||||
| 22 | Чехол жгута проводов двигателя | 1 | 51711380391 | $20.85 | Shop at ECS Tuning | |||||
| 23 | Крепление жгута проводов двигателя | 1 | 51711380390 | $23.28 | Shop at ECS Tuning | |||||
| 24 | Вставка жгута проводов двигателя | 1 | 51711380888 | $3.83 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 Накладка порог / арка колеса?
- This technical diagram illustrates the Накладка порог / арка колеса within the Оснащение кузова group for the 3 Series E30 M3 produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Втулка зелен. (Part #51711932996).
- Which models use the hardware listed in this Накладка порог / арка колеса?
- The hardware and components featured in the Накладка порог / арка колеса are specific to the 3 Series E30 M3 produced during 1988. These technical specifications ensure that parts like the Втулка зелен. (51711932996) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Накладка порог / арка колеса assembly?
- Each item in the Накладка порог / арка колеса corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the Втулка зелен. by locating its position on the schematic, which then links to the official BMW part number 51711932996 for the Оснащение кузова section.
