Вещевой отсек в полу багажного отделения for BMW 3 Series G20 Cедан LCI 330d (2024)

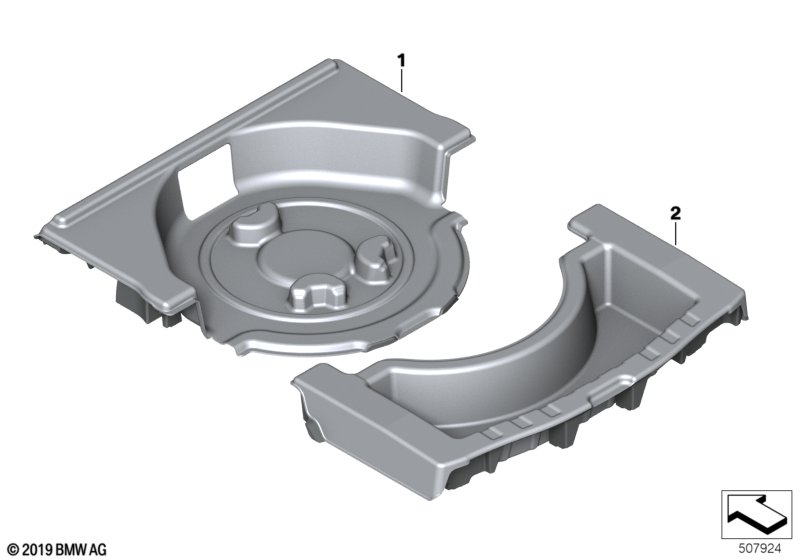

This Вещевой отсек в полу багажного отделения technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Cедан LCI 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Для автомобилей с Аварийное колесо |
S300A=да |
||||||||
| Для автомобилей с Аварийное колесо |
S300A=да |
|||||||||
| 01 | Лоток пола багажного отделения Пд | 1 | 51477459019 | NoS | Shop at ECS Tuning | |||||
| 02 | Лоток пола багажного отделения Зд | 1 | 51477459020 | NoS | Shop at ECS Tuning | |||||
Комментарии
- NoS = No Stock (Деталь отсутствует на центр.складе.)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Cедан LCI 330d Вещевой отсек в полу багажного отделения?
- This technical diagram illustrates the Вещевой отсек в полу багажного отделения within the Оснащение кузова group for the 3 Series G20 Cедан LCI 330d produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Лоток пола багажного отделения Пд (Part #51477459019).
- Which models use the hardware listed in this Вещевой отсек в полу багажного отделения?
- The hardware and components featured in the Вещевой отсек в полу багажного отделения are specific to the 3 Series G20 Cедан LCI 330d produced during 2024. These technical specifications ensure that parts like the Лоток пола багажного отделения Пд (51477459019) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Вещевой отсек в полу багажного отделения assembly?
- Each item in the Вещевой отсек в полу багажного отделения corresponds to the numbered list below the illustration. For the 3 Series G20 Cедан LCI 330d, you can identify the Лоток пола багажного отделения Пд by locating its position on the schematic, which then links to the official BMW part number 51477459019 for the Оснащение кузова section.
