Защитный кожух колесной ниши for BMW 1 Series F40 120d (2024)

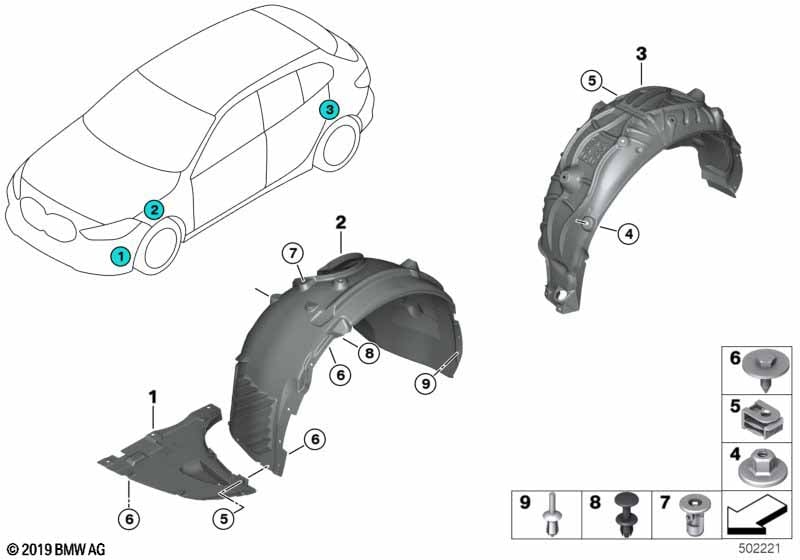

This Защитный кожух колесной ниши technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Для автомобилей с Аэродинамический комплект M Technic |
S715A=нет |
|||||||||
| 01 | Кожух колесной ниши Л Нж | 1 | 51718497237 | NoS | Shop at ECS Tuning | |||||
| 01 | Кожух колесной ниши П Нж | 1 | 51718497238 | NoS | Shop at ECS Tuning | |||||
| Для автомобилей с Аэродинамический комплект M Technic |
S715A=да |
|||||||||
| 01 | Кожух колесной ниши Л Пд | 1 | 51757447033 | NoS | Shop at ECS Tuning | |||||
| 01 | Кожух колесной ниши П Пд | 1 | 51757447034 | NoS | Shop at ECS Tuning | |||||
| 02 | Кожух колесной ниши Л Пд | 1 | 51717436623 | NoS | Shop at ECS Tuning | |||||
| 02 | Кожух колесной ниши П Пд | 1 | 51717436624 | NoS | Shop at ECS Tuning | |||||
| 03 | Кожух колесной ниши Л Зд | 1 | 51717484191 | NoS | Shop at ECS Tuning | |||||
| 03 | Кожух колесной ниши П Зд | 1 | 51717484192 | NoS | Shop at ECS Tuning | |||||
| 03 | Кожух колесной ниши Л Зд | 1 | 51717440179 | NoS | Shop at ECS Tuning | |||||
| 03 | Кожух колесной ниши П Зд | 1 | 51717440180 | NoS | Shop at ECS Tuning | |||||
| 04 | Пластмассовая гайка с шайбой | D=22MM | 18 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Пластм.гайка с пружинным зажимом | TS5 | 8 | 07147311312 | Shop at ECS Tuning | |||||
| 06 | Болт с шестигранной головкой | TS5X17 SW8 D=22 | 62 | 07149126886 | Shop at ECS Tuning | |||||
| 07 | Распорная гайка | L=18.4, DMAX=18 | 16 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 08 | заклепка с распорной втулкой | 2 | 07147136172 | $0.38 | Shop at ECS Tuning | |||||
| 09 | заклепка с распорной втулкой | 6 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
Комментарии
- NoS = No Stock (Деталь отсутствует на центр.складе.)
