Подголовник с механическим приводом Зд for BMW 3 Series E30 325ix (1986)

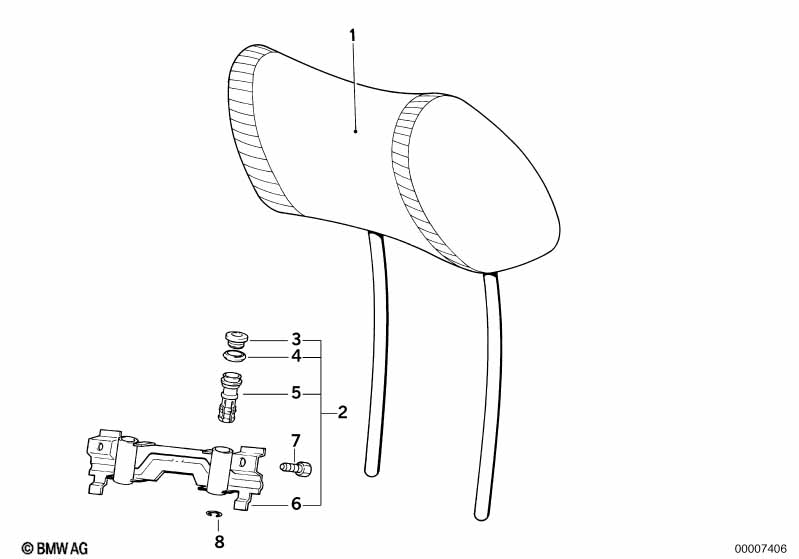

This Подголовник с механическим приводом Зд technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Для автомобилей с Экспортное исполнение для Японии |
L807A=да |
|||||||||
| 02 | Компл. дополн.элементов подголовника Зд | 1 | 52209058393 | $41.57 | Закончено | Shop at ECS Tuning | ||||
| 03 | Щиток | SCHWARZ | 4 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| 04 | Щиток нижняя часть | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 05 | Направляющая гильза | 4 | 52208132020 | $1.80 | Shop at ECS Tuning | |||||
| 06 | Кронштейн | 2 | 52201916156 | $23.28 | Shop at ECS Tuning | |||||
| 07 | Болт с шестигранной головкой с шайбой | M6X16-U1-8.8 | 4 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Пружинное кольцо | 4 | 52101928809 | $0.23 | Shop at ECS Tuning | |||||
Комментарии
- Закончено = запчасть больше не поставляется.
