Сиденье Зд пружинный каркас/основание for BMW 3 Series E30 325ix (1986)

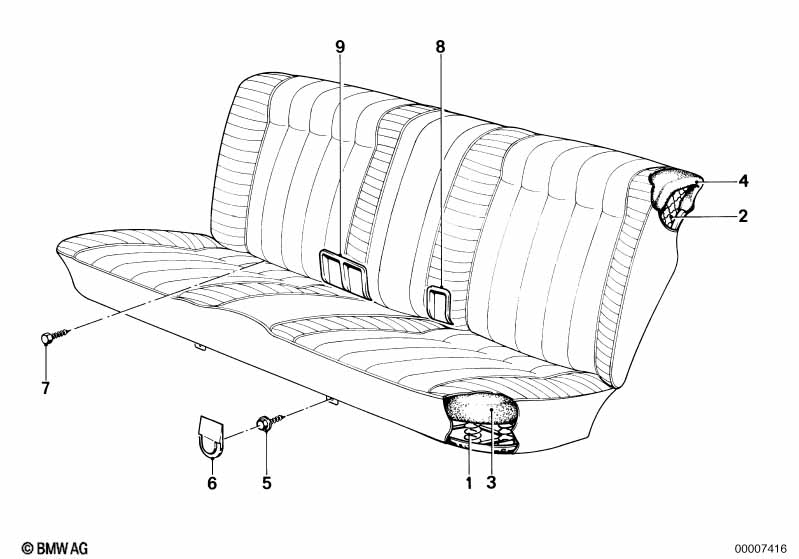

This Сиденье Зд пружинный каркас/основание technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| № | Описание | Дополнение | Кол-во | Дата от | Дата до | Номер запчасти | Цена | Комментарии | ||
|---|---|---|---|---|---|---|---|---|---|---|
| подходит только при заднем подлокотнике |
||||||||||
| 02 | Пружинный каркас спинки сиденья Зд | 1 | 09/1985 | 52201976001 | $139.50 | Закончено | Shop at ECS Tuning | |||
| 04 | Опора спинки сиденья Зд | 1 | 09/1985 | 52201939990 | $152.80 | Закончено | Shop at ECS Tuning | |||
| 07 | Саморез с шестигранной головкой | ST6,3X16-C-Z1 | 2 | 07119916965 | $0.27 | Shop at ECS Tuning | ||||
| 08 | Крепление замка поясного ремня | ANTHRAZIT | 1 | 09/1985 | 52201941332 | $3.47 | Закончено | Shop at ECS Tuning | ||
| 09 | Крепление замка поясного ремня | ANTHRAZIT | 1 | 09/1985 | 52201941338 | $4.56 | Закончено | Shop at ECS Tuning | ||
Комментарии
- Закончено = запчасть больше не поставляется.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325ix Сиденье Зд пружинный каркас/основание?
- This technical diagram illustrates the Сиденье Зд пружинный каркас/основание within the Сиденья group for the 3 Series E30 325ix produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Пружинный каркас спинки сиденья Зд (Part #52201976001).
- Which models use the hardware listed in this Сиденье Зд пружинный каркас/основание?
- The hardware and components featured in the Сиденье Зд пружинный каркас/основание are specific to the 3 Series E30 325ix produced during 1986. These technical specifications ensure that parts like the Пружинный каркас спинки сиденья Зд (52201976001) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Сиденье Зд пружинный каркас/основание assembly?
- Each item in the Сиденье Зд пружинный каркас/основание corresponds to the numbered list below the illustration. For the 3 Series E30 325ix, you can identify the Пружинный каркас спинки сиденья Зд by locating its position on the schematic, which then links to the official BMW part number 52201976001 for the Сиденья section.
