R13 (F 650 GS, GS Dakar) F 650 GS Dakar 00 (0173,0183) Top Case 31l

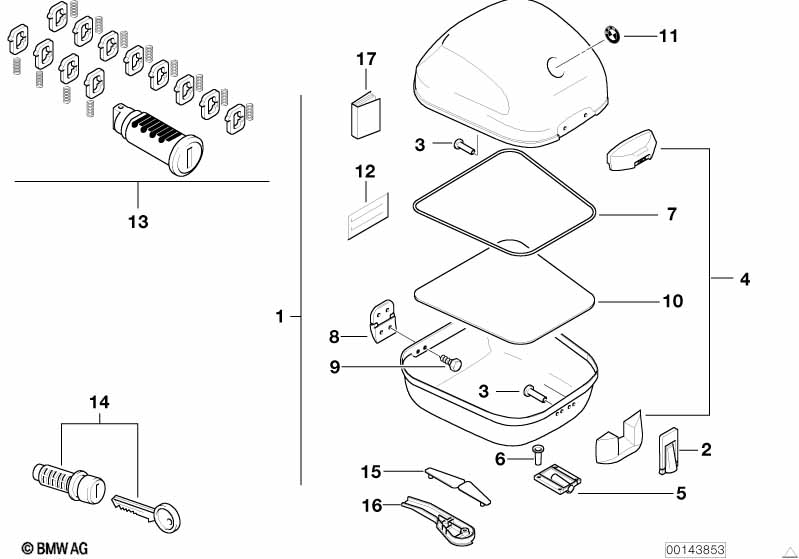

Top Case 31l
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Refer to ITU 46_0654
01 Top case without lock cylinder 31L 1 71607710979 +core
02 cap lock without cylinder 1 71607654346 $42.10 +core
03 set of fittings for cover lock 1 71602337170 $15.08
04 set, cover for top/bottom 1 71607714358
05 immobilizing lock without cylinder 1 71607654347 $47.62 +core
06 set of rivets for immo. lock A3.2X10 1 71602337229 $9.36
07 Gasket 1 71607714344 $27.07
08 Hinge 2 71602337168 $14.38
09 Screw 8 71602337172 $11.13
10 Covering inner 1 71602337205 $18.44
11 Badge D=45 1 52532325201 $9.87
12 Instruction notice, Payload 1 46542337217 ENDED
12 sign, material identifier 1 71602337206
Also for vehicle uniform locking system
13 Rep.kit f lock cylinder TOP-CASE 1 51257660865 $57.81 +core
Important notice! Before ordering keys,
central locking systems, control units
(EWS immobilizer/CAS), etc., it is
vital to ensure that the customer
and/or vehicle owner present proof of
authorization in the form of original
vehicle documents and an official photo
ID! A power of attorney from the
vehicle owner is also required for
authorised third parties. Copies of the
specified credentials (proof of
authorisation) must be kept in the
vehicle records. Please inform BMW
Service immediately if a vehicle key is
lost so it can be deactivated in order
to avoid taking the risk of losing the
insurance cover due to gross negligence
in the event of a theft.
13 Rep.kit f lock cylinder 2 71607658463 $30.75 +core
Important notice! Before ordering keys,
central locking systems, control units
(EWS immobilizer/CAS), etc., it is
vital to ensure that the customer
and/or vehicle owner present proof of
authorization in the form of original
vehicle documents and an official photo
ID! A power of attorney from the
vehicle owner is also required for
authorised third parties. Copies of the
specified credentials (proof of
authorisation) must be kept in the
vehicle records. Please inform BMW
Service immediately if a vehicle key is
lost so it can be deactivated in order
to avoid taking the risk of losing the
insurance cover due to gross negligence
in the event of a theft.
Not suitable for
vehicle uniform locking system
14 Set of locks Top case 1 51257660863 $50.31 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
