R13 (F 650 GS, GS Dakar) F 650 GS Dakar 04 (0176,0186) Rear swing arm linkage components

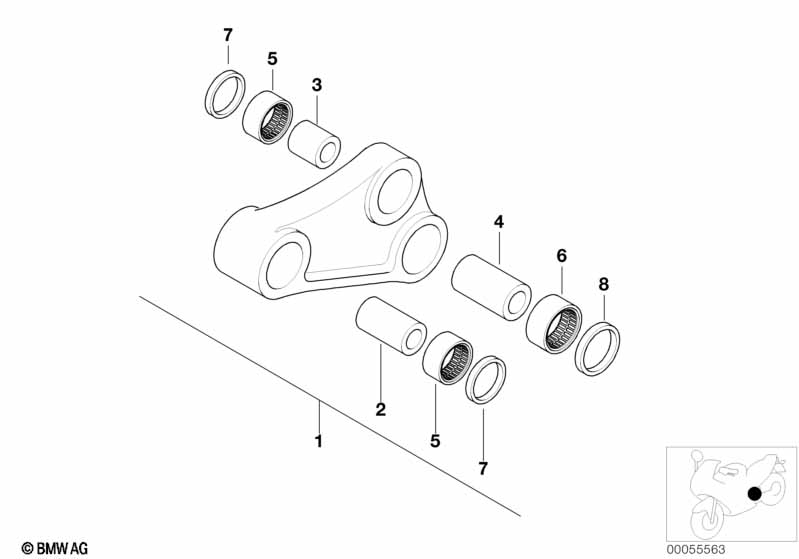

Rear swing arm linkage components
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Deflection lever 1 33537655876 $247.20 +core
02 Bushing 43X18X10,1 1 33537650101 $14.81
03 Bushing L=25MM 1 33537650099 $14.09
04 Bushing L=51MM 1 33537650098 $21.35
05 Needle sleeve 18X24X16 3 33537650094 $14.91
06 Needle sleeve 22X28X16 2 33537650093 $10.43
07 Gasket ring D=18X24X3 4 33537650096 $6.55
08 Gasket ring D=22X28X4 2 33537650097 $8.31
Notes
  • +core = plus core charge (possibility of a return of the old part)
