K72 (F 650 GS, F 800 GS) F 650 GS (0218,0228) Cast rim, rear

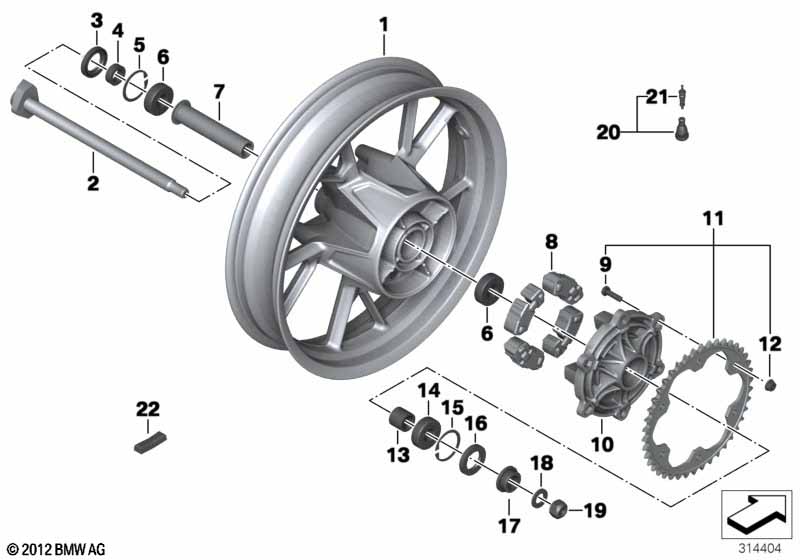

Cast rim, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Further information on the illustration
Control module for RDC - DWA/RDC
For vehicles with
sonnen-gelb/schwarz seidenglanz

YN92=Yes
01 Rear wheel in granit-grau 3,5X17 1 36318531596 +core
Paint granit-grau 963
For vehicles with
alpin-weiss / 30 years GS
Color variant no longer available

YN74=Yes
01 Rear wheel, magnesium 3,5X17 1 36317726035 +core
Repair paint
Paint, magnesium 957
For vehicles with
biarritz-metallic blue
or
weiss-aluminum 2 metallic matt
or
eisberg-silber metallic
or
flamm-rot, Zierl --/--
or
alpinweiss 3
or
azur-metallic blue
or
lava-orange metallic

M847=Yes

M924=Yes

M925=Yes

U695=Yes

U751=Yes

WN26=Yes

WN42=Yes
01 Silver rear wheel 3,5X17 1 36317705793 $927.47 +core
Repair paint
M955 white aluminum met. matt M955
white aluminum met. matt
02 Axle shaft rear 1 36317720906 $116.17 +core
03 Spacer bushing, exterior 1 36317653136 $12.00
04 Shaft seal AS30X47X7 1 36318561711
05 Lock Ring 47X1,75 1 07119906808
06 Grooved ball bearing 20X47X14 2 36318534835
07 Spacer sleeve, interior 1 36317695888 $32.15
08 Absorber 4 33117712298 $28.22
09 Hex bolt M10X30-10.9ZNS3 6 07119902912
09 Hex bolt M8X25-8.8-ZNNIV 6 07119906181 $0.55
10 Sprocket hub M10 1 27717717630 +core
11 Sprocket wheel set Z=41; M10 1 27717726470 +core
11 Sprocket wheel set Z=41; M8 1 27717726615 +core
12 Hex nut wiht flange M8-8-ZNNIV SI 6 07119905977 $1.87
12 Flange nut M10 6 22116779973 $0.68
13 Bushing, inside 1 33117679359 $12.91
14 Grooved ball bearing 6204-2RSH 1 33818543930
15 Lock Ring 47X1,75 1 07119906808
16 Shaft seal AS30X47X7 1 36318561711
17 Spacer bushing, exterior 1 33117679358 $12.79
18 Washer 16-200-HV-ZNS3 1 07119906046 $0.92
19 Hex nut M16 1 36317704461 $13.76
20 Valve D=15MM 1 36317653064 $5.02
21 Valve L=20MM 1 36317683236 $1.35
22 Balance weight, zinc, w. adhesive foil 5G X 36317720635
22 Balance weight, zinc, w. adhesive foil 10G X 36317720636
22 Balance weight, zinc, w. adhesive foil 15G X 36317720637
22 Balance weight, zinc, w. adhesive foil 20G X 36317720638
22 Balance weight, zinc, w. adhesive foil 25G X 36317720639
22 Balance weight, zinc, w. adhesive foil 30G X 36317720640
Notes
  • +core = plus core charge (possibility of a return of the old part)
