K72 (F 650 GS, F 800 GS) F 800 GS 08 (0219,0229) Headlight

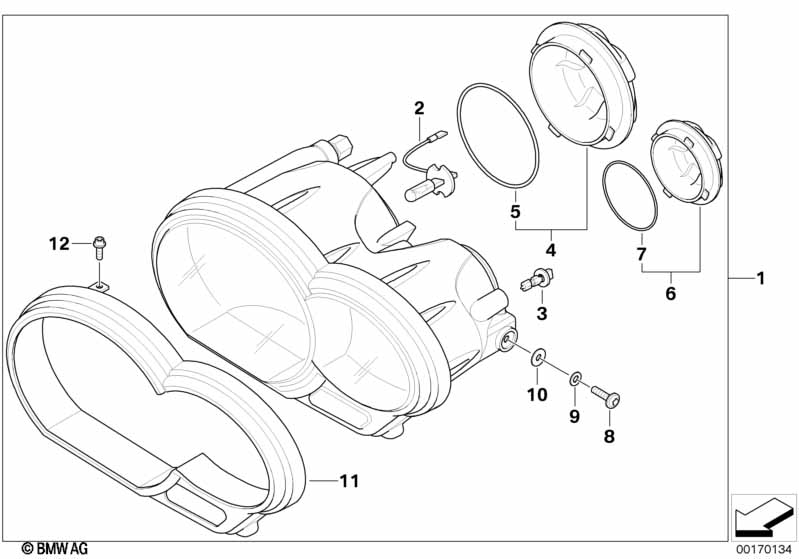

Headlight
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Headlight HELLA 1 63128543114
02 Bulb H7/55W 2 63217160780 $18.86
03 Longlife bulb 5W 1 63217160797 $1.96
04 Headlight cover CEV, Ø = 70MM 1 63127698600 $24.47
05 Gasket D=70 1 63127697761 ENDED
06 Headlight cover CEV, Ø = 50MM 1 63127698599 $24.93
07 Gasket D=50 1 63127697762 ENDED
not included in supplied package
08 Fillister head screw M8X16 2 63127690691 $3.00
09 Washer 8-200 HV-SW 2 07119906215 $2.49
10 Rubber washer D=10 2 02/2010 63127696407 $2.44
10 Washer 8-200 HV-SW 2 02/2010 07119906215 $2.49
11 Headlight cover 1 63127697757 $42.47
12 Torx bolt 3,0X10 2 63127692386 $2.61
Notes
  • ENDED = the part has been discontinued (no longer available).
