R50/5-R90S 69-76 R75/5 Rear wheel swinging arm mounting parts

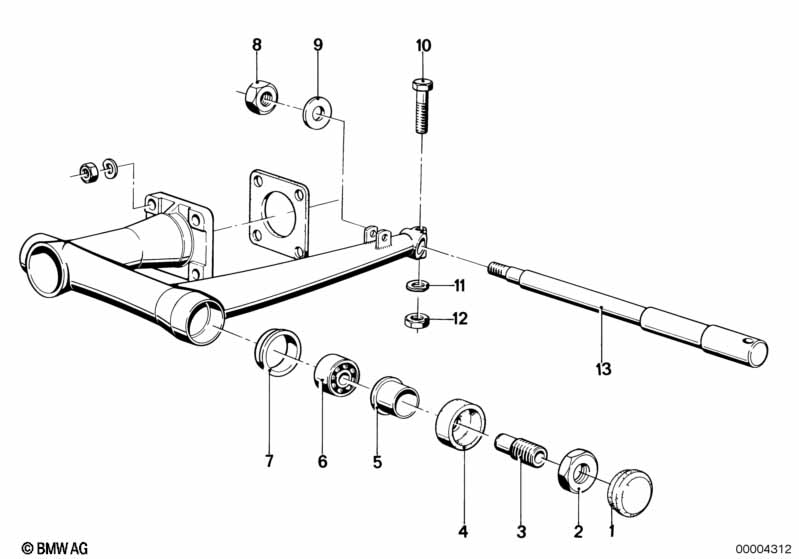

Rear wheel swinging arm mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cap 2 33171230296 $3.71
02 Hex nut 2 33533054174 $8.25
03 Pivot pin L=48MM 2 33171230301
04 Gasket ring 2 07/1980 31412000331 $7.85 ENDED
04 Gasket ring 2 31411233252
05 Sleeve 9,2MM 2 36314038142 $12.44
06 Tapered roller bearing 40X17X14 2 07119985005 $57.36
07 Cover 1 33171239812 $2.75
08 Hex nut M14X1,5 1 07119901309 $1.65
09 Washer 1 33411232709 $3.54
10 Hex bolt M8X35-8.8-ZNS3 1 07/1980 07119904252 $0.82 ENDED
10 Fillister-head screw M8X35-10.9-ZNS3 1 07119906650 $0.87
11 Wave washer B8 1 07/1980 07119932121 $0.37 ENDED
11 Wave washer 1 07119904115 $0.09
12 Hex nut M8-ZNS 1 07119922856 $0.56 ENDED
12 Hex nut M8-8-ZNS3 1 07/1980 07119904032 $0.16
12 Hex nut M8-8-ZNNIV SI 1 07119905515 $0.16
13 Plug type axle drum brake D=17MM/L=296MM 1 33411230303 $119.95 +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
