K29 (R 1200 S, HP2 Sport) R 1200 S (0366,0396) Fuel pump and fuel level sensor

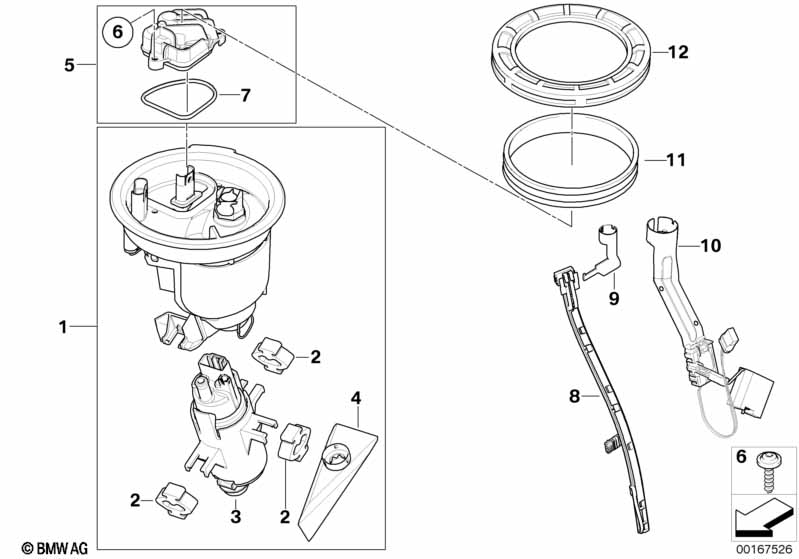

Fuel pump and fuel level sensor
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fuel pump assy 1 16147690534 $553.14 +core
02 Rubber Mounting 3 16141180474 $4.33
03 Fuel pump 1 16147680379 $347.82 +core
04 Strainer 1 16142305974 $44.56
04 Strainer 1 16148551342
05 Fuel pump, electronic 1 16147720776 $142.13 ENDED, +core
05 Fuel pump, electronic 1 16148523697
06 Screw self-tapping 2 16137656906 $0.81
07 Preformed seal 1 16147722876
For vehicles with
On-board computer

X539A=Yes
08 Fuel level sensor 1 16147697815 $221.70 +core
09 Bracket, level sensor 1 16147704400 $64.04
For vehicles with
On-board computer

X539A=No
10 Fuel level sensor 1 16147691950 $100.86 +core
11 Gasket 1 16117677883 $9.02
12 Screw cap 1 16116760285 $8.50
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
