259 (R 850 GS, R 1100 GS) R 1100 GS 94 (0404,0409) Ignition light switch/locking mechanism

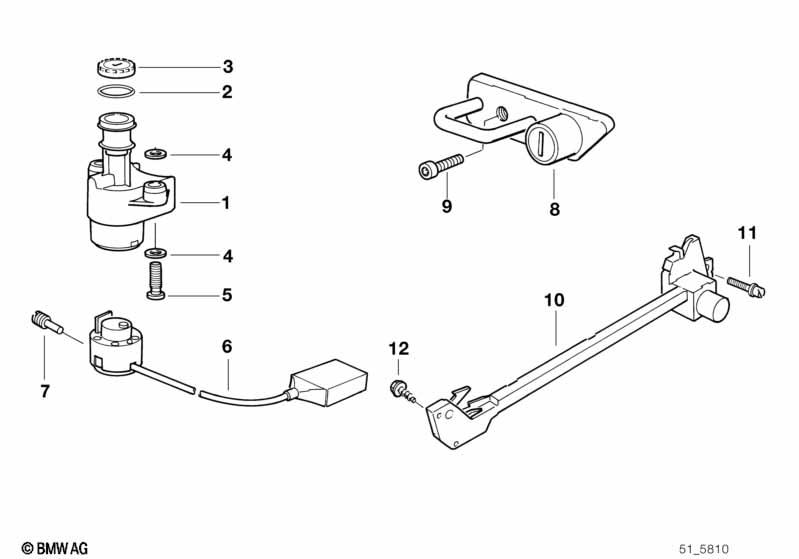

Ignition light switch/locking mechanism
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Steering lock housing 1 51252313183 $145.27 +core
02 O-ring 1 51252313185 $2.67
03 Cap 1 51252313184 $6.89
04 Washer 8-200-ZNS3 4 07119904826 $0.40
05 Lock screw M8X31-MK-ZNS3 2 51257711811 $2.90
06 Ignition/light switch 1 61322306103 $110.36 +core
07 Stud bolt M3X5 1 51259062821 $0.90
08 Helmet lock 1 51252313472 $38.39
09 ISA screw M6X25-8.8-ZNS3 1 07129903807 $1.74
10 Dualseat locking mechanism 1 51252313405 $94.11 +core
11 Fillister head with washer M6X12-Z3-8.8 1 46632322460 $2.23
12 Screw K50X18 1 13901718262 $0.53
Notes
  • +core = plus core charge (possibility of a return of the old part)
