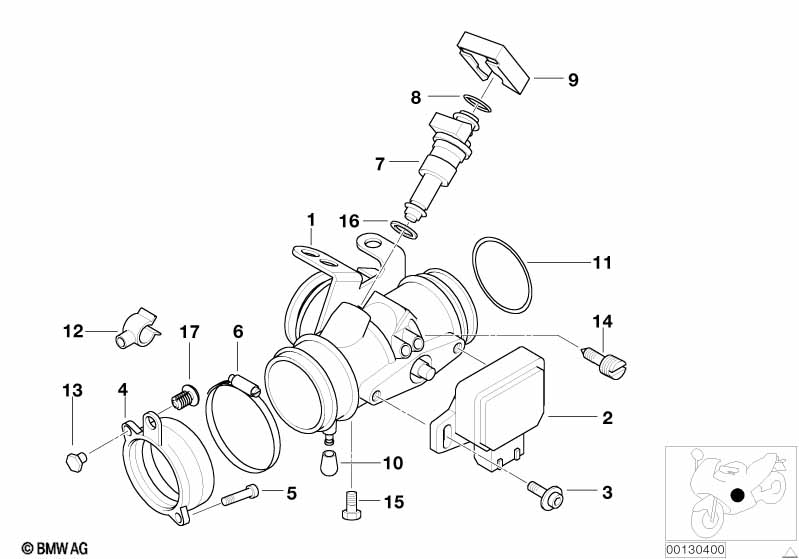

R21 (R 1150 GS) R 1150 GS 00 (0415,0495) Throttle Housing Assy

Throttle Housing Assy
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Left throttle 1 13541342495 $634.36 +core
01 Right throttle 1 13541342496 $360.00 +core
02 Switch 1 09/2007 13631461852 $253.68 ENDED, +core
02 Throttle valve switch 1 13638409501
03 Fillister-head screw M4X12 2 07119902162 $1.39
04 Inlet manifold left 1 11611340769 $64.15 +core
04 Intake manifold right 1 11611340770 $64.15 +core
05 Screw M6X20 4 11131460677 $0.87
06 Hose clamp D=64 2 13727654865 $3.87
07 Injection valve 2 13711342366 $153.50 +core
08 O-ring 7,52X3,51 2 13641437476
09 Spring clip 2 13531341697 $0.80
10 Protection cap 2 13547694924 $1.20
11 O-ring 52X2 2 13541341797 $6.32
12 Hose clamp D=7,2MM 2 12122306327 $0.36
13 Cap 2 12122306326 $1.39
14 Adjusting screw M 9X0,75 2 13541342074 $8.02
15 Hex bolt M5X10 1 07119913218 $0.12
16 O-ring 7,52X3,51 2 13641437476
only for double-ignition
17 Covering cap 2 11617677940 $0.87
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
