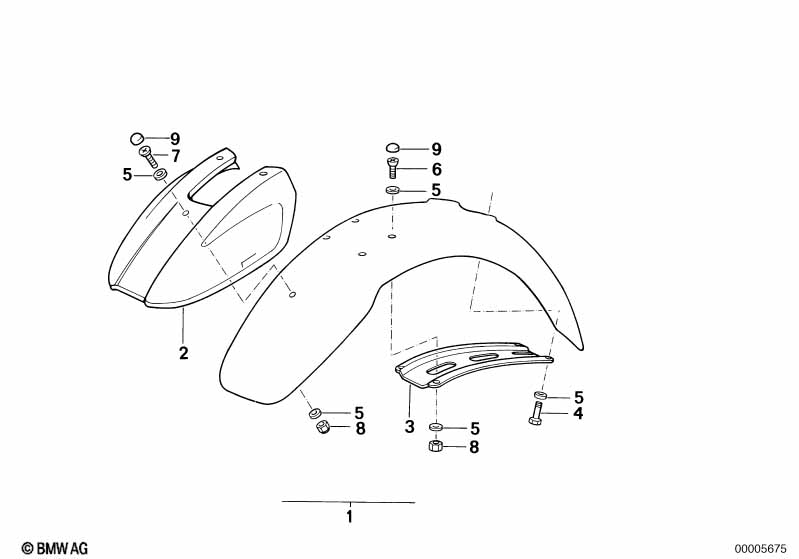

R 80 GS, R 100 GS, PD (87-90) R 100 GS PD Mudguard front-extended

Mudguard front-extended
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Kit, mudboard extender GRUNDIERT 1 46612315110 ENDED
01 Kit, mudboard extender ALPINWEISS 1 46612315111 ENDED, ABE 9797065
02 Fender extender GRUNDIERT 1 46612303925 $62.47
03 Reinforcement 1 46612303566 $39.91 ENDED
04 Hex bolt M5X16 4 07119913241 $0.18 ENDED
05 Washer A5,3-140 HV-ZNS X 12/1996 07119931029 $0.40 ENDED
05 Washer 10X5,3X1-200 HV X 07119904206
05 Washer 5,3-140 HV-ZNS X 07119936439 $0.40
06 Screw 3 51181813015 $0.27
07 Screw M5X20 3 46612315376 $0.60
09 Covering cap WEISS 5 51181813017 $0.21
Notes
  • ENDED = the part has been discontinued (no longer available).
  • ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
