K589 (K100, RS, RT, LT) K 100 RS 83 (0502,0503,0513) Frame

Frame

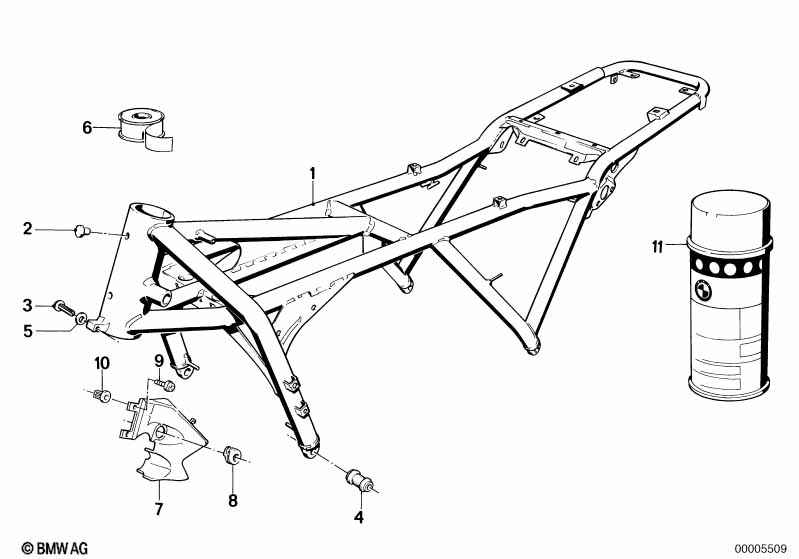

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Frame 1 04/1985 46512310674 +core
FG* K100 0 008 131/ K100RS 0 084 625/
K100RT 0 027 888
FG* K100RS USA 0 042 660/
K100RT USA 0 053 295
01 Frame 1 04/1985 46512310667 +core
03 Notched nail 6X8 2 07119944688 $0.55
04 Rubber Mounting 2 46512312775 $15.49
06 Foil 50M X 61131459527 ENDED
07 Covering left 1 46631453227 $23.36
07 Covering right 1 46631453228
08 Grommet 1 46631453392 $2.80
09 Fillister head self-tapping screw ST4,2X19 ZN-SW 4 07119901179 $0.25 ENDED
09 Sheet metal screw ST4,2X19-U2-C-H 4 07119904176 $0.25
10 Expanding nut 4 52531451393 $0.75
11 SPRAY Schwarz MATT 121 X 51911453483 ENDED
11 SPRAY Schwarz MATT 400ML X 51911900346 $26.27
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
