K589 (K100, RS, RT, LT) K 100 RT 84 (0504,0505,0514) 5 speed transmission-drive shaft

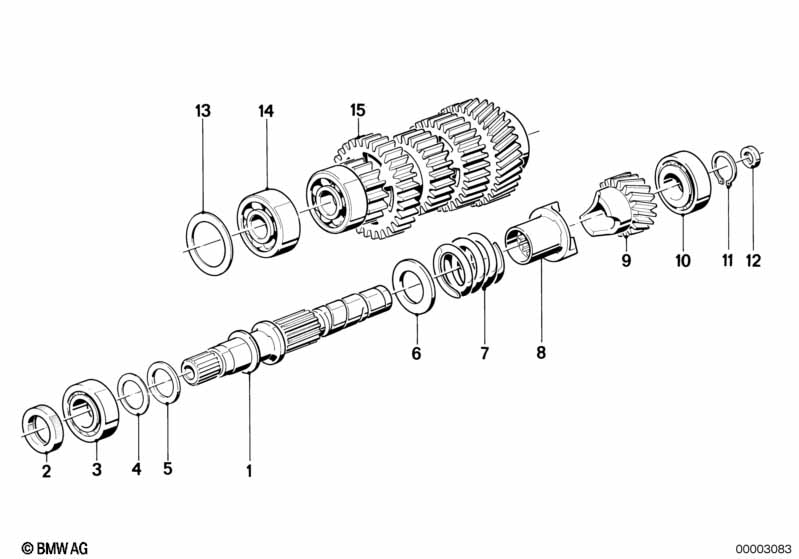

5 speed transmission-drive shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Drive Shaft 1 12/1985 23211457060 $400.13 ENDED, +core
01 Drive Shaft 1 23211457061 +core
02 Shaft seal 22X35X7 1 08/1983 23121451151 $13.22 ENDED
02 Shaft seal 22X35X7 1 23121451020
03 Tapered roller bearing 45,24X16,64X22 1 08/1983 23121451160 $55.82 ENDED, +core
03 Tapered roller bearing 45,24X16,64X22 1 23121451044 +core
04 Shim 22X30X0,3 1 23211451141 $4.74
04 Shim 22X30X0,4 1 23211451142 $4.74
04 Shim 22X30X0,5 1 23211451143 $4.74
05 Shim 22X30X1,5 1 23311451047 $11.85
05 Shim 22X30X1,48 1 23311451048 $11.85
05 Shim 22X30X1,46 1 23311451049 $11.85
05 Shim 22X30X1,44 1 23311451050 $11.85
05 Shim 22X30X1,42 1 23311451051 $11.85
06 Washer 1 23211451036 $6.03
07 Compression spring 1 23211451037 $24.47
08 Thrust adapter 1 23211451038 $136.34
09 Gear wheel 1 23211451039 $304.76 +core
10 Tapered roller bearing 45X19,05X15,5 1 08/1983 23121451158 $28.69 ENDED, +core
10 Tapered roller bearing 45X19,05X15,5 1 23121451040 +core
11 Lock Ring A19X1,5 1 23211451097 $1.28
12 Shaft seal 9X15X4 1 08/1983 23211451159 $11.77 ENDED
12 Shaft seal 9X15X4 1 23211451061 ENDED
13 Shim 37X47X0,35 1 23111341431 $9.78
13 Shim 37X47X0,45 1 23111341432 $9.78
13 Shim 37X47X0,55 1 23111341433 $9.78
13 Shim 37X47X0,30 1 23111451138 $9.78
13 Shim 37X47X0,40 1 23111451139 $9.78
13 Shim 37X47X0,50 1 23111451140 $9.78
14 Grooved ball bearing 17X47X14 2 08/1983 23121451163 $43.03 ENDED, +core
14 Grooved ball bearing 17X47X14 2 23121451063 +core
15 Intermediate shaft 1 23211464358 $1285.32 +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
