K589 (K 1200 RS, K 1200 LT) K 1200 LT 04 (0549,0559) Front wheel brake, Integral ABS

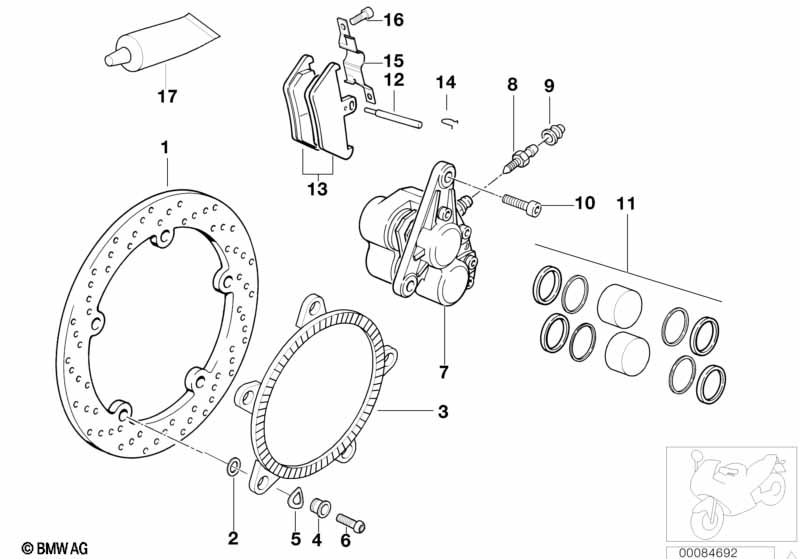

Front wheel brake, Integral ABS
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Brake rotor, front D=320/5MM 2 11/2007 34112338228 $318.86 +core
02 Stop disk 5 11/2007 34117670217 $1.94
03 Sensor ring, front, integral ABS 1 34527667325 $89.47 +core
04 Roll pin 10 11/2007 34112314887 $8.61
05 Wave washer 14,2 / 21,6 10 11/2007 34112314888 $1.87
07 Brake caliper without pads, left 1 34117722525 +core
07 Brake caliper without pads, right 1 34117722526 +core
08 Vent screw 2 34117658388 $7.00
09 Cap 2 34117658389 $6.09
10 ISA screw M8X32-10.9 ZNS3 4 34117713338 $2.58
11 Repair set brake caliper D=32/36MM 1 34117721664
12 Pin 2 34112338251 $7.18
13 Brake pads kit, red EVO 32/36 2 34117690169 $118.61 +core
Required for repair
-- Pin 2 34112338251 $7.18
14 Clip 2 34112338250 $4.21
15 Spring, brake caliper, left 1 34112338247 $12.29
15 Spring, brake caliper, right 1 34112338248 $12.29
16 Fillister-head screw M4 4 34112338249 $3.84
Notes
  • +core = plus core charge (possibility of a return of the old part)
