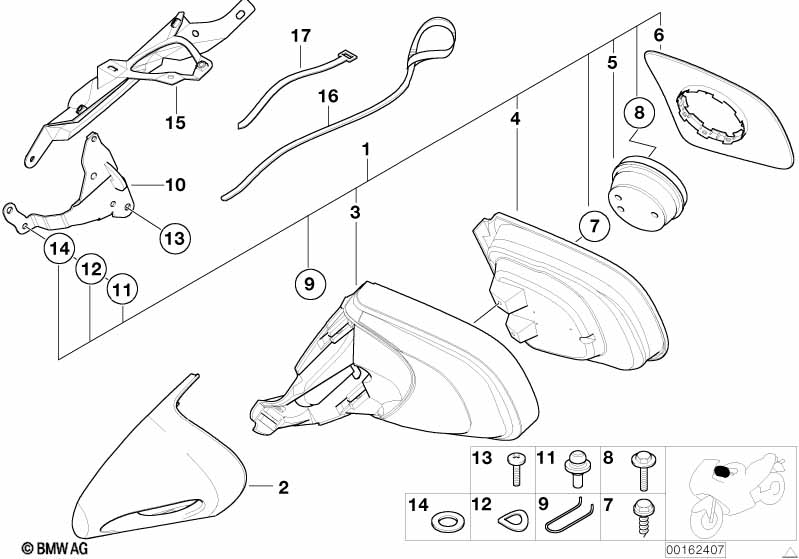

K589 (K 1200 RS, K 1200 LT) K 1200 LT 04 (0549,0559) Mirror

Mirror
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Left rear view mirror CHROM 1 51167679903 $265.28 +core
only in conjunction with
01 Right rear view mirror CHROM 1 51167679904 $265.28 +core
only in conjunction with
-- Locking pin 1 51167655592 $6.85
-- Spring 1 51167655593 $6.68
02 Trim panel prime coated left 1 51162347215 $119.61
02 Trim panel left ROHTEIL / BLANK 1 51162347213
02 Trim panel prime coated right 1 51162347216 $119.61
02 Trim panel right ROHTEIL / BLANK 1 51162347214
02 Trim panel left DARKGRAPHIT 1 51167687817 $202.32
02 Trim panel right DARKGRAPHIT 1 51167687818 $202.32
02 Trim panel left OZEANBLAU 1 51167687819 $202.32 ENDED
02 Trim panel right OZEANBLAU 1 51167687820 $202.32 ENDED
02 Trim panel left LIGHTGELB 1 51167687821 $202.32 ENDED
02 Trim panel right LIGHTGELB 1 51167687822 $202.32 ENDED
02 Trim panel left STURMGRAU-MET. 1 51167695633 $202.32 ENDED
02 Trim panel right STURMGRAU-MET. 1 51167695634 $202.32 ENDED
02 Trim panel left MAGNESIUMSCHW. 1 51167695635 $202.32 ENDED
02 Trim panel right MAGNESIUMSCHW. 1 51167695636 $202.32 ENDED
02 Trim panel left NACHTSCHWARZ 1 51167701595 $202.32
02 Trim panel right NACHTSCHWARZ 1 51167701596 $202.32
02 Trim panel left BIARRITZBLAU 1 51167701597 $202.32 ENDED
02 Trim panel right BIARRITZBLAU 1 51167701598 $202.32 ENDED
03 Cap left CHROM 1 51167670951 $124.21
only in conjunction with
03 Cap right CHROM 1 51167670952 $124.21
only in conjunction with
-- Locking pin 1 51167655592 $6.85
-- Spring 1 51167655593 $6.68
04 Cup LI 1 51162347199 $55.72
04 Cup RE 1 51162347200 $55.72
05 Adjuster unit 2 51162347188 $26.21
06 Mirror glass LI 1 51162347237 $52.64
06 Mirror glass RE 1 51162347238 $52.64
07 Screw 3,5X16 8 63132305808 $0.84 ENDED
only in conjunction with
07 Screw 3,5X16-ZNS 8 63132306455 $2.61
only in conjunction with
-- Washer A4,3 8 07119902254
08 Screw 6 51162347198 $7.33
09 Spring 3 51167655593 $6.68
only in conjunction with
-- Locking pin 6 51167655592 $6.85
10 Bracket upper LI 1 46632308721 $23.15
10 Bracket upper RE 1 46632308722 $23.15
11 Locking pin 3 51167655592 $6.85
only in conjunction with
-- Spring 6 51167655593 $6.68
12 Wave washer B5 2 07119932098 $0.38
13 Fillister head screw 6 18221464332 $1.74
14 Washer 10X5,3X1-200 HV 2 07119904206
14 Washer 5,3-140 HV-ZNS 2 07119936439 $0.40
15 Bracket lower left 1 46632309443 $29.04
15 Bracket lower right 1 46632309444 $29.04
16 Catch 2 46637699804 $6.89
17 Cable tie L=200MM/B=3,6MM 2 61131367599 $0.43
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
