3' E30 320i Brake master cylinder/expansion tank

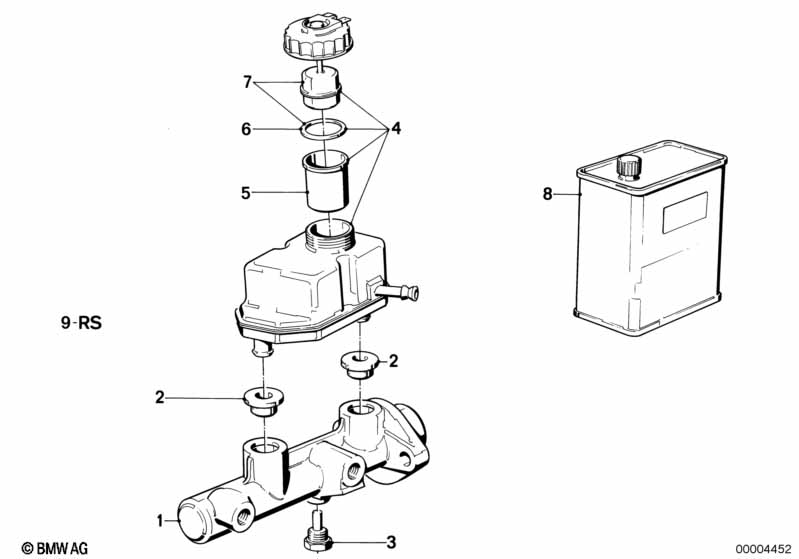

Brake master cylinder/expansion tank
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Brake master cylinder 19,05/20,64MM 1 07/1986 34311156273 $534.60
01 Brake master cylinder 22,20/17,46MM 1 05/1987 34311157206 $534.60
01 Brake master cylinder 20,64MM 1 07/1986 05/1987 34311154405 $534.60
only applies to
-- Brake pressure regulator X 07/1986 05/1987 34341156716 $200.38 ENDED
For vehicles with
Anti block system (ABS)

=Yes
01 Brake master cylinder 20,64MM 1 05/1987 34311154918 $534.60
01 Brake master cylinder 22,20/17,46MM 1 05/1987 34311157206 $534.60
02 Sealing plug 2 34311160133 $5.08
03 Stopper bolt outer ATE 1 34311103475 $4.98 ENDED
04 Expansion tank 1 09/1985 34321114840 $161.80
04 Expansion tank 1 09/1985 09/1987 34321155697 $76.91 ENDED
04 Expansion tank ATE 1 09/1987 34321157178 $76.91 ENDED
05 Strainer tube 1 09/1985 34321118085 $4.45
05 Strainer tube ATE 1 09/1985 34321156030 $4.72
06 Gasket 1 34321102798 $2.82
07 Cap with warning switch 1 09/1985 34321153157 $33.79
07 Cap with warning switch ATE 1 34321161541 $34.73
07 Cap with warning switch 1 09/1985 09/1987 34321156029 $32.61
07 Cap with warning switch ATE 1 09/1987 10/1992 34321161541 $34.73
09 Repair kit brake master cylinder 1 34311154863 $238.13 ENDED
only applies to
-- Brake master cylinder 19,05/20,64MM X 34311154263 $239.06 ENDED
09 Repair kit brake master cylinder 1 34311154861 $155.12 ENDED
only applies to
-- Brake master cylinder 20,64MM X 34311154405 $534.60
09 Repair kit brake master cylinder 1 34311156786 $143.96 ENDED
only applies to
-- Brake master cylinder 19,05/20,64MM X 34311156273 $534.60
Notes
  • ENDED = the part has been discontinued (no longer available).
