1' F20 125d Trim panel dashboard

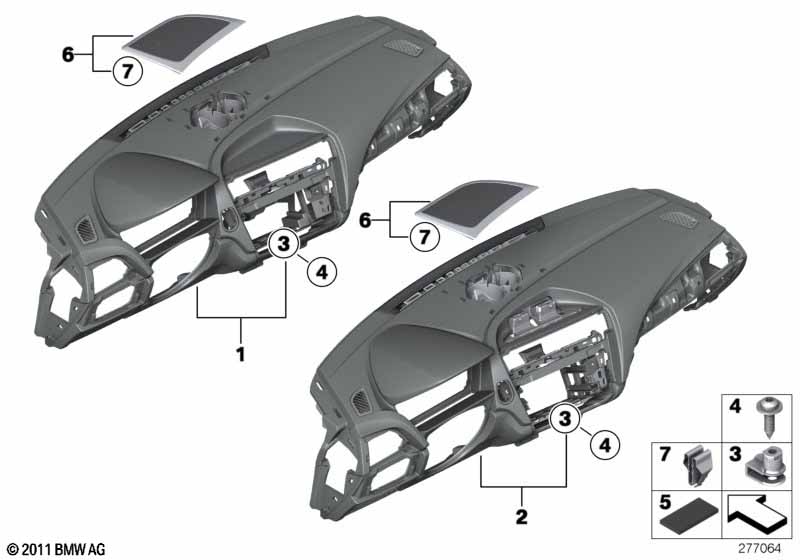

Trim panel dashboard
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles produced
to 07/01/2017
For vehicles with
Navigation system Business
and
Navigation system Professional
and
Radio BMW Professional

S606A=No

S609A=No

S663A=No
01 Instrument panel SCHWARZ 1 51459270593
only in conjunction with
-- Cover, center speaker 1 51459205402
including hinged cover bin, driver's
side
For vehicles with
  Navigation system Business
  and
  Navigation system Professional
  and
  Radio BMW Professional
and
  oyster/oyster
  or
  oyster/Akzent oyster dark

S606A=No

S609A=No

S663A=No

DH=Yes

L9=Yes
01 Instrument panel OYSTER 1 51459270594
only in conjunction with
-- Cover, center speaker 1 51459205402
including hinged cover bin, driver's
side
For vehicles with
Navigation system Business
or
Navigation system Professional
or
Radio BMW Professional

S606A=Yes

S609A=Yes

S663A=Yes
02 Instrument panel SCHWARZ 1 51459270595
only in conjunction with
-- Cover, center speaker 1 51459205402
including hinged cover bin, driver's
side
For vehicles with
  Navigation system Business
  or
  Navigation system Professional
  or
  Radio BMW Professional
and
  oyster/oyster
  or
  oyster/Akzent oyster dark

S606A=Yes

S609A=Yes

S663A=Yes

DH=Yes

L9=Yes
02 Instrument panel OYSTER 1 51459270596
only in conjunction with
-- Cover, center speaker 1 51459205402
including hinged cover bin, driver's
side
03 C-clip for plastic nut 8 07149200938
04 Fillister head self-tapp.screw w collar ISA 4,2X19 6 07148263913 $0.18
05 Felt strip 100X70X2 X 07149199575 $2.72 ENDED
05 Set felt strip self-adhesive X 51452353024
For vehicles with
Hi-Fi System Harman Kardon
and
HiFi speaker system

S674A=Yes

S676A=Yes
06 Cover, center speaker 1 51459205402
For vehicles with
Hi-Fi System Harman Kardon
and
HiFi speaker system

S674A=Yes

S676A=No
06 Cover, center speaker 1 51459205402
For vehicles with
Hi-Fi System Harman Kardon
and
HiFi speaker system

S674A=No

S676A=Yes
06 Cover, center speaker 1 51459205402
07 Clamp X 07/2011 51167151389 $1.10 ENDED
07 Clamp X 07147321144
Notes
  • ENDED = the part has been discontinued (no longer available).
