1502-2002tii 1502 Carburetor-nozzles/gasket set carb.

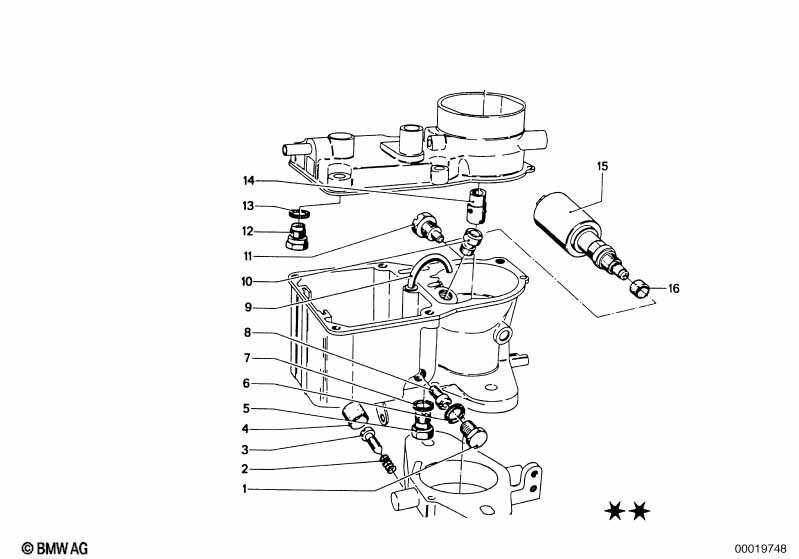

Carburetor-nozzles/gasket set carb.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Solex 38-40 Pdsi
01 Screw plug 1 13110639182 $5.13 ENDED
02 Compression spring 1 13110539210 ENDED
02 Compression spring 1 13111250707 $1.85 ENDED
03 Idling mixture screw 1 13111265930 $6.36 ENDED
06 Gasket ring 1 13110639151 $1.95 ENDED
07 Gasket ring 1 13111253435 $0.86
09 Injection tube 80 1 03/1966 07/1977 13111256964 $18.75 ENDED
12 Float valve assy 1 13111271963 $27.04
13 Gasket ring 1 03/1966 07/1977 13110539245 $3.85
15 Electr.idle valve 42,5 1 01/1975 07/1977 13111261188 $135.04
16 Gasket ring 1 01/1975 07/1977 13111707010 $2.48
Notes
  • ENDED = the part has been discontinued (no longer available).
