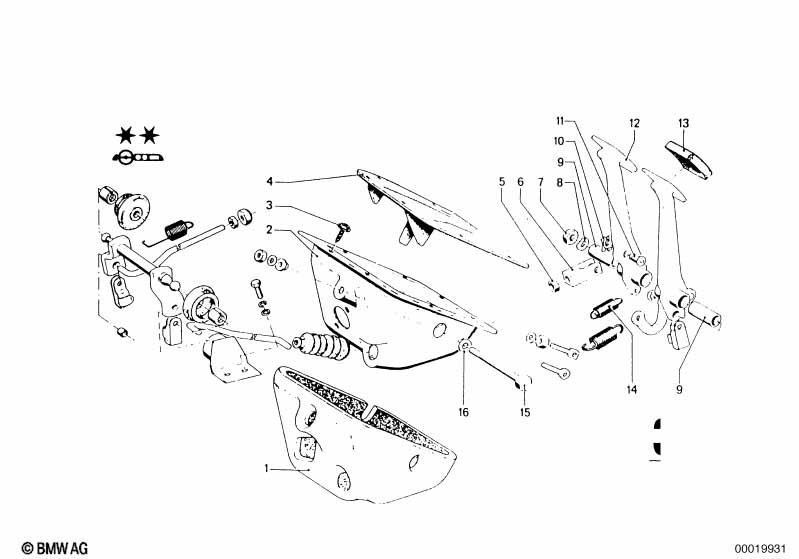

1502-2002tii 2002 Pedals-supporting bracket

Pedals-supporting bracket
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Supporting bracket HYDRAULISCH 1 35111101550 $367.39 ENDED
03 Sheet metal screw B6,5X16 10 12138530118 $0.40
04 Sound absorber 1 35114440140 $27.21 +core
06 Forkhead L=44MM 1 35211154097 $2.77
07 Set nut 25 M10 1 07509063128 ENDED
07 Self-locking hex nut M10 1 07129964672 $0.36
08 Wave washer B10-ZN 1 07119932112 $0.11 ENDED
08 Wave washer B10-ZNS 1 04/1972 07119932122 $0.38 ENDED
08 Wave washer B10-ZNS3 1 07119904463
09 Bushing 2 35214045707 $2.18
10 Clamp 1 35411104248 $0.82 ENDED
11 Pin 1 35211110925 $1.44
12 Brake lever 1 35211100501 ENDED
13 Rubber pad 2 35214440113 $6.00
14 Tension spring 1 35211103886 ENDED
15 Hex bolt M10X100-10.9PHR 1 07119912710 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
