3' E21 318 Ignition wiring

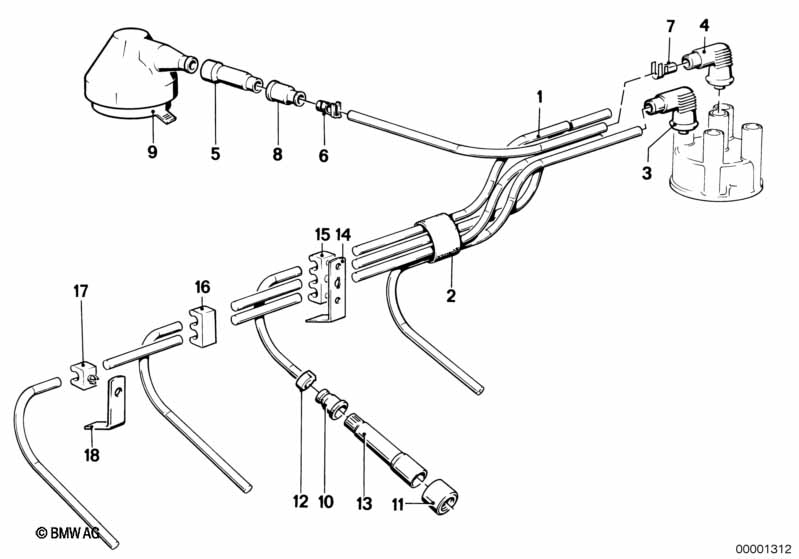

Ignition wiring
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Ignition wire X 09/1981 12121705675 $11.91 +core
02 Insulating hose B18X1 X 09/1981 07119975349 $1.10
03 Suppressing socket 1000-OHM 4 09/1981 12121289841 $10.24 ENDED
only in conjunction with
03 Suppressing socket 4 09/1981 12121289844
only in conjunction with
-- Circular connector X 09/1981 12121705656 $1.73 +core
04 Suppressing socket 1000-OHM 1 09/1981 12121289841 $10.24 ENDED
only in conjunction with
04 Suppressing socket 1 09/1981 12121289844
only in conjunction with
-- Circular connector X 09/1981 12121705656 $1.73 +core
06 Cable sleeve 1 09/1981 12128536120 $6.76 ENDED
08 Protection cap 1 09/1981 12118536129 $6.07
08 Protection cap 1 09/1981 12121360397 $2.29
12 Identification ring ZYL.1 2 09/1981 12121706186 $0.60
12 Identification ring ZYL.2 2 09/1981 12121706187 $0.60
12 Identification ring ZYL.3 2 09/1981 12121706188 $0.60
12 Identification ring ZYL.4 2 09/1981 12121706189 $0.60
13 Spark plug socket 1000-OHM 4 09/1980 12121351544 $5.50 ENDED
13 Spark plug socket 1000-OHM 4 09/1980 12121356004 $7.84
14 Holder 1 09/1981 12121357937 $3.38 ENDED
15 Holder 1 09/1981 12121353672 $2.54
16 Holder 1 09/1981 13531254041 $0.60
17 Holder 1 09/1981 12121360791 $0.61 ENDED
18 Holder 1 09/1981 12121360790 $2.02 ENDED
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
