3' F30 328i Exhaust system, rear

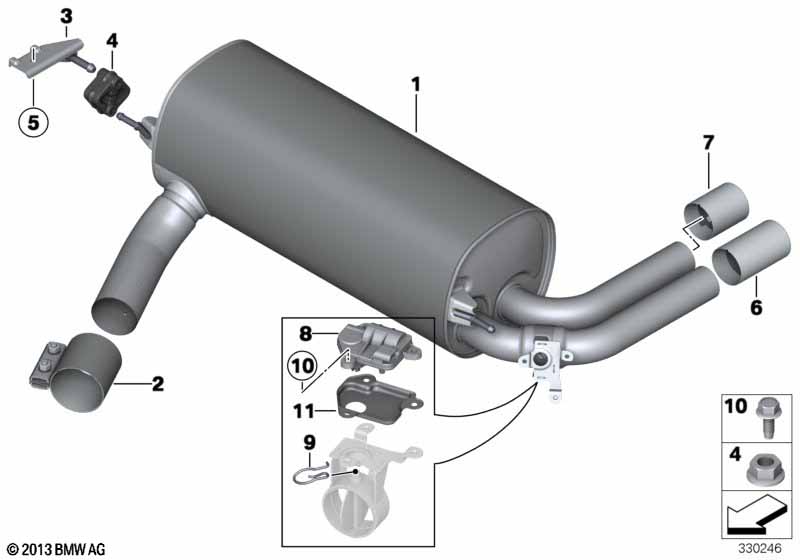

Exhaust system, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear muffler with exhaust flap 1 18307645938
02 Clamping bush D=75MM 1 18307560781 $152.42
03 Bracket for rear silencer, left 1 18307620316
03 Bracket, rear muffler right 1 18307620364
04 Rubber Mounting 2 18307616850
05 Hex nut M8-ZNS3 2 07119904024 $0.20
06 Tailpipe tip, chrome 1 18307610637 +core
For vehicles with
Modern Line

P7S1A=Yes
06 Tailpipe end piece, alu-look 1 18307610638 +core
For vehicles with
Sport Line
or
Sport Line
or
M Sport
or
Individual option high-gloss Shadow-Line

P7ACA=Yes

P7B1A=Yes

P7B3A=Yes

S7M9A=Yes
06 Tailpipe tip, black chrome 1 18307610639 +core
07 Tailpipe tip, chrome 1 18307610637 +core
For vehicles with
Modern Line

P7S1A=Yes
07 Tailpipe end piece, alu-look 1 18307610638 +core
For vehicles with
Sport Line
or
Sport Line
or
M Sport
or
Individual option high-gloss Shadow-Line

P7ACA=Yes

P7B1A=Yes

P7B3A=Yes

S7M9A=Yes
07 Tailpipe tip, black chrome 1 18307610639 +core
08 Actuator drive, exhaust flap 1 12/2014 18307620322 ENDED
08 Actuator drive, exhaust flap 1 18308632154
09 Fixing bow 1 18307620323
10 Countersunk screw M6X16 3 07119908064
10 Hex bolt M6X16 3 18308623584
11 Thermal protection 1 18307628041
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
