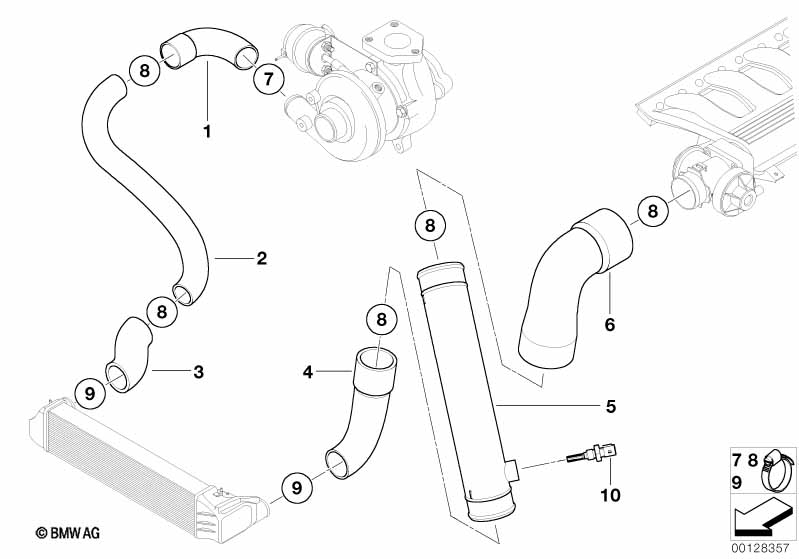

3' E46 330d Intake manifold-supercharg.air duct

Intake manifold-supercharg.air duct
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Hot-climate version

S823A=No
01 Pressure hose assy 1 11612249524
For vehicles with
Hot-climate version

S823A=Yes
01 Pressure hose assy 1 11617787291
02 Pressure pipe 1 11617785500
For vehicles with
Hot-climate version

S823A=No
03 Pressure hose assy 1 09/2001 11612248634
03 Pressure hose assy 1 09/2001 11617788576
For vehicles with
Hot-climate version

S823A=Yes
03 Pressure hose assy 1 09/2001 11617787352
03 Pressure hose assy 1 09/2001 11617788576
04 Pressure hose assy 1 11617799392
05 Pressure pipe 1 11612354139
06 Pressure hose assy 1 11617799389
07 Hose clamp D=53-60MM 1 11617786526 $4.89
08 Hose clamp D= 59-68MM 5 11617786527 $5.07
09 Hose clamp D=53-60MM 2 11617786526 $4.89
