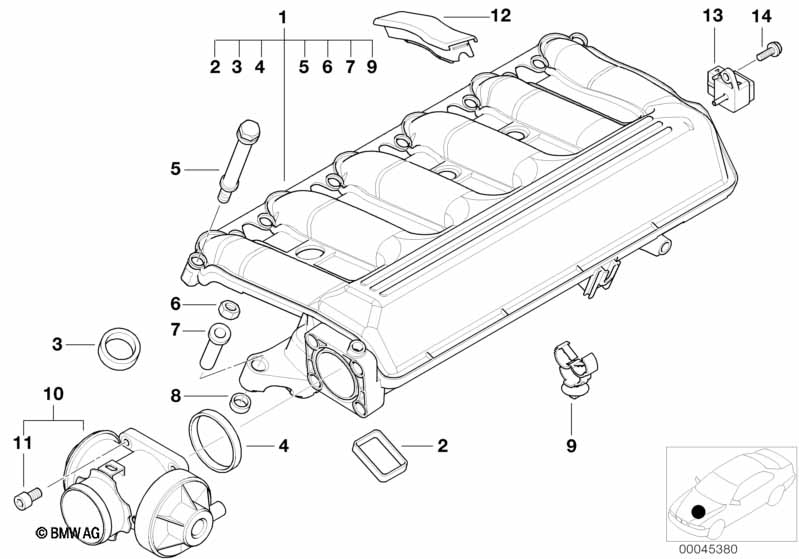

3' E46 330d Intake manifold system-AGR

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
	For vehicles with Automatic transmission	S205A=No
01	Intake manifold		1			11617792019	$615.48
02	Profile-gasket		6			11617790198	$5.44
03	Profile-gasket		6			11612246945	$3.62
04	Rubber seal		1			11612245439	$2.42
05	Fastening elements	M6X42	12			11612246948	$3.40
06	Flange nut	M7	7			11617545279	$0.47
07	Rubber Mounting		7			11612246947	$7.60
08	backup ring		7			11612246949	$4.97
09	Wire holder, two-place		2			61138380213	$0.35
10	EGR-valve		1			11717804378
10	Exch. EGR valve		1			11718479605
11	Hex bolt with washer	M6X25-ZNNIV SI	4			07119905400	$0.65
12	Cover	ZYL. 1-5	4			11142248838
12	Cover	ZYL. 5-6	1			11142248839
13	Fuel injection system-ressure sensor	240KPA	1			13622246977	$105.93
14	Hex bolt with washer	M6X14-U1-8.8	1			07119905525	$0.47
