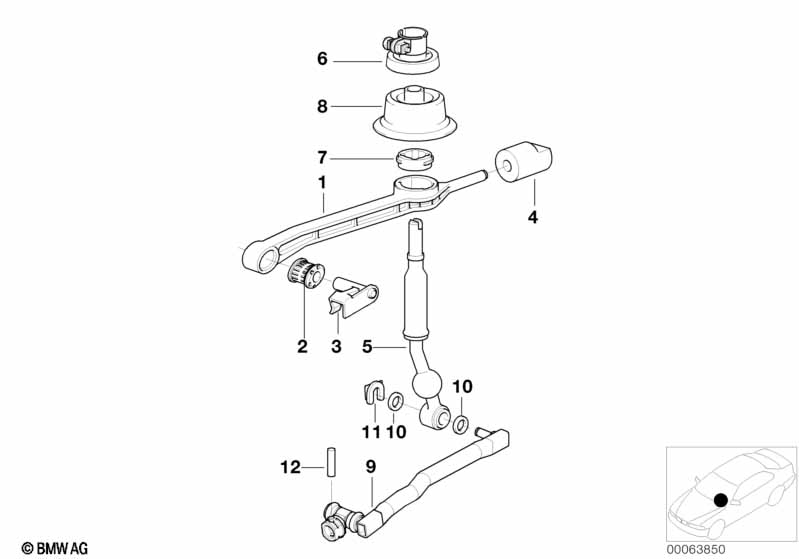

3' E46 320d Gear shifting,mech.transm./diesel

Gear shifting,mech.transm./diesel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Shifting arm 1 09/2001 25111434108 $19.31
02 Bush bearing oval L=26MM/SCHWARZ 1 09/2001 25117507695 $2.93
03 Bolt D=10MMX40MM 1 09/2001 25111221849 $4.97
04 Bearing, shifting arm 1 09/2001 25111222015 $17.40
Bracket f shifting arm bearing
HG 41
05 Shift lever 1 09/2001 25117527257 $66.20
06 Vibration absorber F=190HZ 1 09/2001 25111434028 $77.41
07 Bearing, shift lever 1 09/2001 25111220600 $10.33
08 Rubber boot 1 09/2001 25117522149 $17.48
09 Selector rod with joint A=260MM/PBX 1 09/2001 25111434523 +core
10 Plastic washer 10X16X0,9 2 09/2001 25111220439 $0.25
11 Securing clip 1 09/2001 25117571899 $0.66
12 Dowel pin 1 09/2001 23411466134 $0.70
Notes
  • +core = plus core charge (possibility of a return of the old part)
