3' E46 318Ci Waterpump - Thermostat

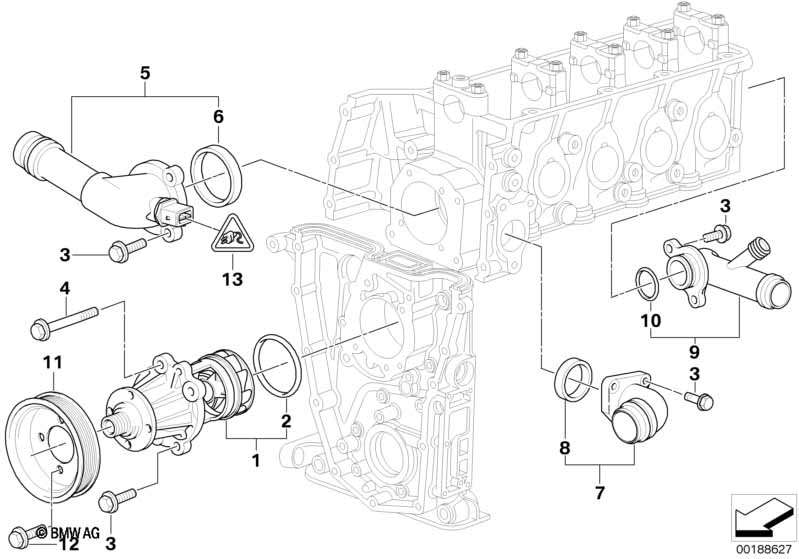

Waterpump - Thermostat
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Coolant pump, mechanical 1 11510393338 $115.83
02 O-ring 58X5 1 11511714519 $6.96
03 Hex bolt with washer M6X20 X 07119904527 $0.44
04 Fillister head with washer M8X80 1 07119901977
05 Thermostat housing with thermostat 1 11531437085 $105.29
06 Axial gasket 1 11531437149 $4.27
07 Flange 1 11531743329 $36.50
08 Axial gasket 1 11531247124 $4.00
09 Connector 1 11531708808 $11.83
10 O-ring 26,5X2,5 1 11511739691 $1.88
11 Pulley D=123MM 1 11511739527 $30.32
For vehicles with
Automatic transmission
and
Hot-climate version

S205A=Yes

S823A=Yes
11 Pulley D=108MM 1 11511437719 +core
12 Hex bolt with washer M6X16-U1-8.8 4 07119904524 $0.25
13 Socket housing 2 POL. 1 12521427615 $1.73
only in conjunction with
-- Socket terminal SLK 2.8 ELA 0,22-0,35MM² AG 2 12521427612 $0.50 SI 2 02 05(194)
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
